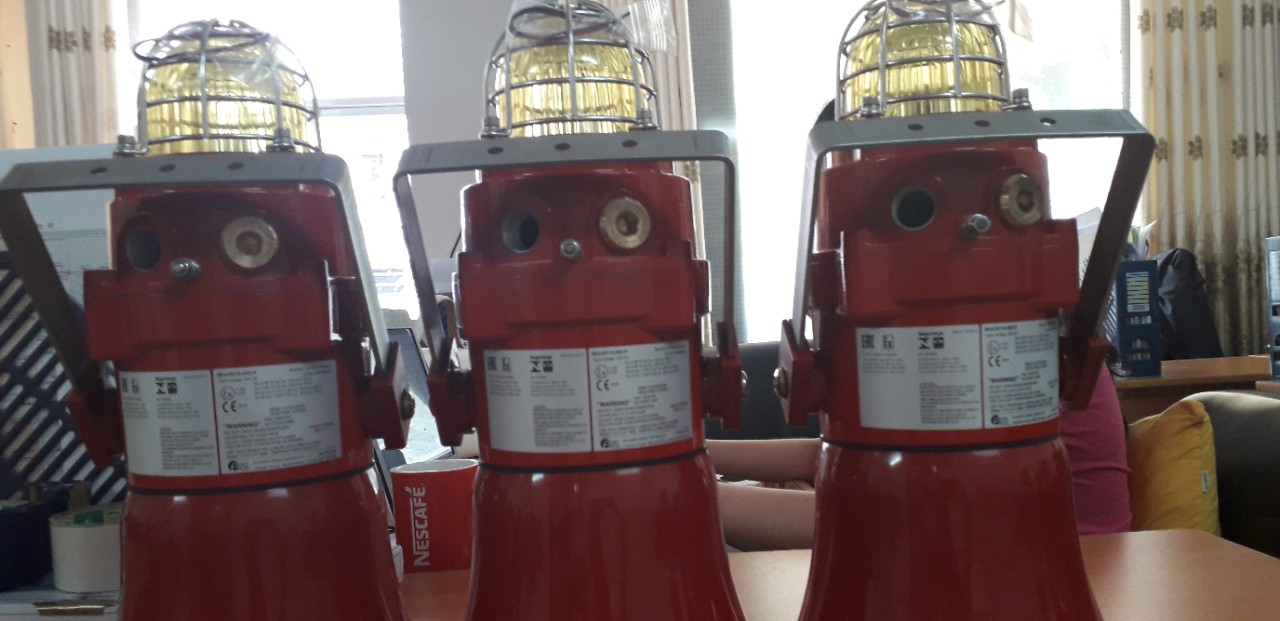

STExC1X05F Alarm Horn & Xenon Strobe

Công suất 117dB(A) Còi & 5 Joule Đèn Xenon. Model STExC1X05F là dòng có âm phát báo động rất lớn với loại còi sùng trâu được kết hợp với đen Xenon có cường độ quang thông lên đến 500,000cd. Cấp bảo vệ mạnh mẽ IP66, Vật liệu thân thép SS316L.Model STExC1X05F đãm các tất cả các tiêu chuẩn chống cháy nổ IECEx & ATEX Zone 1, 2, 21 & 22.

Còi báo động & Xenon nhấp nháy cho phép hoạt động đồng thời hoặc độc lập. Với 64 âm thanh báo động theo giai đoạn hoặc kênh, tần số âm báo cho 2 giai đoạn đầu tiên có thể được lựa chọn độc lập. Mỗi giai đoạn trong số 4 giai đoạn có thể được kích hoạt từ xa, ví dụ: thông qua một rơle ngoài.

Thông Số kỹ thuật


Alarm Horn:
Maximum output: 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
Nominal output: 113dB(A) @ 1m +/- 3dB - Tone 2 [104dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A)
Effective range: 125m/410ft @ 1KHz
Supply Voltages: 24Vdc; 115Vac; 230Vac
Stage switching: DC units: negative or positive
AC units: common supply line
Strobe Beacon:
Energy: 5 Joules (5Ws)
Flash rates: Option 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90 fpm)
Option 3: Double Strike
Peak Candela: 500,000 cd - calculated from energy (J)
Eff. Intensity: 250 cd - calculated from energy (J)
Peak Candela: 46,976 cd* - measured ref. to I.E.S.
Eff. Intensity: 143 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life : Emissions are reduced to 70% after 5 million flashes
General:
Ingress protection: EN60529: IP66
Enclosure matl: 316L Stainless Steel
Enclosure finish: Chromated & powder coated
Colour: RAL3000 Red
Cable entries: 3 x M20 ISO (2 x stopping plugs supplied)
Adaptors to M25, 1/2" & 3/4" NPT can be specified
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight:                                                       7.45kg/16.42lbs

Current Consumption

Voltage: Range: Alarm Horn Xenon Strobe Combined
12V dc 10-14Vdc 146mA 678mA 824mA
24V dc 20-28Vdc 185mA 323mA 508mA
48V dc 42-54Vdc 138mA 198mA 336mA
230V ac 220-240Vac
50/60Hz		 21mA 79mA 106mA
Nominal current. Alarm horn sounder: Tone 2, Xenon Strobe: 1Hz Flash Rate

Part Codes

Version: Part code:
Product type: STExC1X05
Horn type: F Flare re-entrant horn
Voltage: DC012
DC024
DC048
AC230		 12V dc
24V dc
48V dc
230V ac
Cable Entry Type:[e]






Note:		 A
B
C
D
E
F
G		 3 x M20x1.5mm
2 x 1/2" NPT - adaptors
2 x 3/4" NPT - adaptors
2 x M25x1.5mm - adaptors
1 x 1/2" NPT - adaptor
1 x 3/4" NPT - adaptor
1 x M25x1.5mm - adaptor
M20 stopping plugs for unused entries supplied
Adaptor/Stopping
plug material: [m]		 B
N
S		 Brass
Nickel Plated
Stainless Steel (standard)
Bracket/Guard material: [s] 1
2
3
4		 A2 304 Stainless Steel
A4 316 Stainless Steel (default)
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 IECEx & ATEX Group II 2G/D Zone 1, 2, 21 & 22
Enclosure colour: [x] R Red RAL3000
Lens colour: [y] A
B
C
G
M
R
Y		 Amber
Blue
Clear
Green
Magenta
Red
Yellow
Example part code: STExC1X05FAC230 [e][m][s][v][x]/[y]
STExC1X05FAC230AS2A1R/R

Coding

  • II 2G Ex db IIC Gb T6 Ta -50°C to +40°C
  • II 2G Ex db IIC Gb T5 Ta -50°C to +55°C
  • II 2G Ex db IIC Gb T4 Ta -50°C to +70°C
  • II 2D Ex tb IIIC Db T110°C Ta -50°C to +70°C

Effective Candela lens colour factor


Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3 Stage 4
T1  ↓ 1000 Continuous PFEER Toxic Gas Any T2 T44
T2  ↓ 1200/500 @ 1Hz Sweeping DIN/PFEER P.T.A.P. Any T3 T44
T3  ↓ 1000 @ 0.5Hz (1s on, 1s off) Intermittent PFEER Gen. Alarm Any T2 T44
T4  ↓ 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s NF C 48-265 Any T24 T1
T5  ↓ 544(100mS)/440 (400mS) NF S 32-001 Any T19 T1
T6  ↓ 1500/500 - (0.5s on , 0.5s off) x3 + 1s gap AS4428 Any T44 T1
T7  ↓ 500-1500Hz Sweeping 2 sec on 1 sec off AS4428 Any T44 T1
T8  ↓ 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) NEN 2575 Any T24 T35
T9  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a Any T34 T1
T10  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a Any T34 T1
T11  ↓ 420(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal Any T1 T8
T12  ↓ 1000(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal Any T1 T8
T13  ↓ 422/775 (0.85 on, 0.5 off) x3 + 1s gap NFPA Temporal Any T1 T8
T14  ↓ 1000/2000 @ 1Hz - Singapore Any T3 T35
T15  ↓ 300 Continuous Any T24 T35
T16  ↓ 440 Continuous Any T24 T35
T17  ↓ 470 Continuous Any T24 T35
T18  ↓ 500 Continuous IMO code 2 (Low) Any T24 T35
T19  ↓ 554 Continuous Any T24 T35
T20  ↓ 660 Continuous Any T24 T35
T21  ↓ 800 Continuous IMO code 2 (High) Any T24 T35
T22  ↓ 1200 Continuous Any T24 T35
T23  ↓ 2000 Continuous Any T3 T35
T24  ↓ 2400 Continuous Any T20 T35
T25  ↓ 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent Any T44 T8
T26  ↓ 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent Any T44 T8
T27  ↓ 470 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T44 T8
T28  ↓ 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent Any T24 T8
T29  ↓ 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent Any T44 T8
T30  ↓ 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent Any T24 T8
T31  ↓ 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent Any T24 T8
T32  ↓ 745 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T33  ↓ 800 (0.25s on, 1.00s off) Intermittent Any T24 T8
T34  ↓ 800 @ 2Hz (0.25s on, 0.25s off) IMO code 3.a (High) Any T24 T8
T35  ↓ 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T36  ↓ 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T37  ↓ 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T24 T8
T38  ↓ 363/518 @ 1Hz (0.50s/0.50s) Alternating Any T8 T19
T39  ↓ 450/500 @ 2Hz (0.25s/0.25s) Alternating Any T8 T19
T40  ↓ 554/440 @ 1Hz (0.50s/0.50s) Alternating Any T24 T19
T41  ↓ 554/440 @ 0.65Hz (0.76s/0.76s) Alternating Any T8 T19
T42  ↓ 561/760 @ 0.83Hz (0.60s/0.60s) Alternating Any T8 T19
T43  ↓ 780/600 @ 0.96Hz (0.52s/0.52s) Alternating Any T8 T19
T44  ↓ 800/1000 @ 2Hz (0.25s/0.25s) Alternating Any T24 T19
T45  ↓ 970/800 @ 2Hz (0.25s/0.25s) Alternating Any T8 T19
T46  ↓ 800/1000 @ 0.875Hz (0.57s/0.57s) Alternating Any T24 T19
T47  ↓ 2400/2900 @ 2Hz (0.25s/0.25s) Alternating Any T24 T19
T48  ↓ 500/1200 @ 0.3Hz (1.67s/1.67s) Sweeping Any T24 T12
T49  ↓ 560/1055 @ 0.18Hz (2.73s/2.73s) Sweeping Any T24 T12
T50  ↓ 560/1055 @ 3.3Hz (0.15s/0.15s) Sweeping Any T24 T12
T51  ↓ 600/1250 @ 0.125Hz (4s/4s) Sweeping Any T24 T12
T52  ↓ 660/1200 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T53  ↓ 800/1000 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T54  ↓ 800/1000 @ 7Hz (0.07s/0.07s) Sweeping Any T24 T12
T55  ↓ 800/1000 @ 50Hz (0.01s/0.01s) Sweeping Any T24 T12
T56  ↓ 2400/2900 @ 7Hz (0.07s/0.07s) Sweeping Any T24 T12
T57  ↓ 2400/2900 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T58  ↓ 2400/2900 @ 50Hz (0.01s/0.01s) Sweeping Any T24 T12
T59  ↓ 2500/3000 @ 2Hz (0.25s/0.25s) Sweeping Any T24 T12
T60  ↓ 2500/3000 @ 7.7Hz (0.65s/0.65s) Sweeping Any T24 T12
T61  ↓ 800Hz Motor Siren Any T24 T12
T62  ↓ 1200Hz Motor Siren Any T24 T12
T63  ↓ 2400Hz Motor Siren Any T24 T12
T64  ↓ Simulated Bell Any T21 T12
Country specific or custom tone configurations and alarm frequencies are available upon request.
