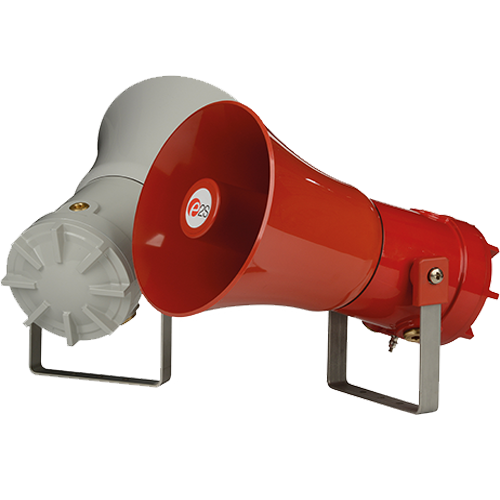

D1xS2F Alarm Horn Sounder

125dB(A) alarm horn. The D1xS2F is a high output alarm horn sounder with re-entrant flare horn. Low current consumption and high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensure the D1xS2F is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications. The 24V dc version is approved for public mode fire alarm use and the 110-240V ac version for general signaling use.

Featuring 64 alarm tone sounds, each of the available 4 stage/channels can be remotely triggered. Approved for gas groups ABCD in Class I Division 1, Class I Zone 1 IIC and for dust groups FG in Class II Division 1, Zone 20 IIIB environments. The threaded flameproof joint simplifies both installation and routine maintenance.

Specification


Maximum output: 125dB(A) @ 1 metre [116dB(A) @ 10ft/3m]
Nominal output: 121dB(A) @ 1m +/- 3dB - Tone 35 [112dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A)
Effective range: 200m/656ft @ 1KHz
Voltages DC: 24V dc (10-30V dc)
Voltages AC: 110-240V ac 50/60Hz
Stage switching: DC units: negative or positive
AC units: common supply line
Ingress protection: EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material: Marine grade aluminium LM6- copper free
Chromated & powder coated - corrosion proof
Colour: Red (RAL3000), Grey (RAL7038)
Cable entries: 1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Grounding stud: M5
Operating temp: -40° to +70°C [-40° to +158°F]
Storage temp: -50° to +70°C [-58° to +158°F]
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 4.3kg/9.5lbs

Part Codes

Version: Part code:
Product type: D1xS2
Horn type: F Flare re-entrant horn
Voltage: DC024
AC230		 10-30V dc
110-240V ac
Cable Entry Type:[e] A
B
C		 1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Adaptor/Stopping
plug material: [m]		 B
N
S		 Brass
Nickel Plated
Stainless Steel
Bracket material: [s] 1
2
3
4		 A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1
D1		 Gas environments Class I/Zone1
Dust environments Class II/Zone 20
Enclosure colour: [x] G
R		 Grey RAL7038
Red RAL3000
Example: D1xS2FAC230 [e][m][s][v][x]
D1xS2FAC230AB1A1R
Ratings:
A1: Gas version
NEC / CEC: Class I Div 1 ABCD T6 Ta -40°C to +70°C
  Class I Div 2 ABCD T6 Ta -40°C to +70°C
  Class I Zone 1 IIC T6 Ta -40°C to +70°C
24V dc version is approved for public mode fire alarm use
D1: Dust version
NEC / CEC: Class II Div 1 FG T6 Ta -40°C to +70°C
  Class II Div 2 FG T6 Ta -40°C to +70°C
  Class III Div 1&2
  Zone 20 IIIB Ta -40°C to +70°C

Alarm sounder

Version: Voltage: Current:
10-30V dc 24V dc 923mA
110-240V ac 50/60Hz 115V ac 267mA
110-240V ac 50/60Hz 230V ac 159mA

Coding

  • A1: Gas version
    NEC / CEC:
    Class I Div 1 ABCD T6 Ta -40°C to +70°C
    Class I Div 2 ABCD T6 Ta -40°C to +70°C
    Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
    24V dc version is approved for public mode fire alarm use
  • D1: Dust version
    NEC / CEC:
    Class II Div 1 FG T6 Ta -40°C to +70°C
    Class II Div 2 FG T6 Ta -40°C to +70°C
    Class III Div 1 & 2
    Zone 20, 21, 22 IIIB Ta -40°C to +70°C
  • Protection concept: Ex d / AEx d

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3 Stage 4
T 1  ↓ 1000 Continuous - PFEER Toxic Gas Any T 2 T 44
T 2  ↓ 1200/500 @ 1Hz Sweeping - DIN / PFEER P.T.A.P. Any T 3 T 44
T 3  ↓ 1000 @ 0.5Hz (1s on, 1s off) Intermittent - PFEER Gen. Alarm Any T 2 T 44
T 4  ↓ 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s - NF C 48-265 Any T 24 T 1
T 5  ↓ 544(100mS)/440 (400mS) - NF S 32-001 Any T 19 T 1
T 6  ↓ 1500/500 - (0.5s on , 0.5s off) x3 + 1s gap - AS4428 Any T 44 T 1
T 7  ↓ 500-1500Hz Sweeping 2 sec on 1 sec off - AS4428 Any T 44 T 1
T 8  ↓ 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) - NEN 2575 Any T 24 T 35
T 9  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a Any T 34 T 1
T 10  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a Any T 34 T 1
T 11  ↓ 420(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal Any T 1 T 8
T 12  ↓ 1000(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal Any T 1 T 8
T 13  ↓ 422/775 - (0.85 on, 0.5 off) x3 + 1s gap - NFPA Temporal Any T 1 T 8
T 14  ↓ 1000/2000 @ 1Hz - Singapore Any T 3 T 35
T 15  ↓ 300 Continuous Any T 24 T 35
T 16  ↓ 440 Continuous Any T 24 T 35
T 17  ↓ 470 Continuous Any T 24 T 35
T 18  ↓ 500 Continuous - IMO code 2 (Low) Any T 24 T 35
T 19  ↓ 554 Continuous Any T 24 T 35
T 20  ↓ 660 Continuous Any T 24 T 35
T 21  ↓ 800 Continuous - IMO code 2 (High) Any T 24 T 35
T 22  ↓ 1200 Continuous Any T 24 T 35
T 23  ↓ 2000 Continuous Any T 3 T 35
T 24  ↓ 2400 Continuous Any T 20 T 35
T 25  ↓ 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent Any T 44 T 8
T 26  ↓ 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent Any T 44 T 8
T 27  ↓ 470 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T 44 T 8
T 28  ↓ 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent Any T 24 T 8
T 29  ↓ 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent Any T 44 T 8
T 30  ↓ 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent Any T 24 T 8
T 31  ↓ 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent Any T 24 T 8
T 32  ↓ 745 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 33  ↓ 800 (0.25s on, 1.00s off) Intermittent Any T 24 T 8
T 34  ↓ 800 @ 2Hz (0.25s on, 0.25s off) - IMO code 3.a (High) Any T 24 T 8
T 35  ↓ 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 36  ↓ 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 37  ↓ 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T 24 T 8
T 38  ↓ 363/518 @ 1Hz (0.50s / 0.50s) Alternating Any T 8 T 19
T 39  ↓ 450/500 @ 2Hz (0.25s / 0.25s) Alternating Any T 8 T 19
T 40  ↓ 554/440 @ 1Hz (0.50s / 0.50s) Alternating Any T 24 T 19
T 41  ↓ 554/440 @ 0.65Hz (0.76s / 0.76s) Alternating Any T 8 T 19
T 42  ↓ 561/760 @ 0.83Hz (0.60s / 0.60s) Alternating Any T 8 T 19
T 43  ↓ 780/600 @ 0.96Hz (0.52s / 0.52s) Alternating Any T 8 T 19
T 44  ↓ 800/1000 @ 2Hz (0.25s / 0.25s) Alternating Any T 24 T 19
T 45  ↓ 970/800 @ 2Hz (0.25s / 0.25s) Alternating Any T 8 T 19
T 46  ↓ 800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating Any T 24 T 19
T 47  ↓ 2400/2900 @ 2Hz (0.25s / 0.25s) Alternating Any T 24 T 19
T 48  ↓ 500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping Any T 24 T 12
T 49  ↓ 560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping Any T 24 T 12
T 50  ↓ 560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping Any T 24 T 12
T 51  ↓ 600/1250 @ 0.125Hz (4s / 4s) Sweeping Any T 24 T 12
T 52  ↓ 660/1200 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 53  ↓ 800/1000 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 54  ↓ 800/1000 @ 7Hz (0.07s / 0.07s) Sweeping Any T 24 T 12
T 55  ↓ 800/1000 @ 50Hz (0.01s / 0.01s) Sweeping Any T 24 T 12
T 56  ↓ 2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping Any T 24 T 12
T 57  ↓ 2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 58  ↓ 2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping Any T 24 T 12
T 59  ↓ 2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping Any T 24 T 12
T 60  ↓ 2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping Any T 24 T 12
T 61  ↓ 800Hz Motor Siren Any T 24 T 12
T 62  ↓ 1200Hz Motor Siren Any T 24 T 12
T 63  ↓ 2400Hz Motor Siren Any T 24 T 12
T 64  ↓ Simulated Bell Any T 21 T 12
For Stage 2 any Stage 1 alarm tone sound can be selected.
Country specific or custom tone configurations and alarm frequencies are available upon request.
