GNExL2 PA Loudspeaker 25W

The flameproof GNExL2 PA loudspeaker is suitable for Zone 1 & Zone 2 applications.

The GNEx range features enclosures manufactured from GRP (glass reinforced polyester), moulded in natural red, but also available in other colours.
The re-entrant flare horn is high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Specification


SPL: 105dB +/-3dB @ 1w @ 1m (Pink)
119dB +/-3dB @ 25w @ 1m (Rated)
Rated power: 25 Watts RMS
70v line tappings: 25w / 12.5w / 6w / 2w tappings
100v line tappings: 25w / 12.5w / 6w / 2w tappings
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 130° @ 1kHz & 32° @ 4kHz
Frequency range: 300Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer version)
470µF Capacitor (Impedance version)
Ingress protection: IP66/67
Housing material: GRP
Colour: RAL3000 Red
(others available on request)
Horn flare: High impact UL94 V0
& 5VA FR ABS (Red)
Cable entries: Dual M20 ISO
Terminals: 0.5 to 4.0mm² cables
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 70/100V line: 4.3kg/9.46Ibs Low imp.: 3.95kg/8.59Ibs

Part Codes

Version: Part code:
Product type: GNExL2
Type: V100
R008
R016		 100V/70V Line Transformer
8 Ohm Low impedance
16 Ohm Low impedance
Stopping
plug material: [m]		 B
N
S		 Brass
Nickel Plated
Stainless Steel
Bracket material: [s] 1
2
3
4		 A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 Approval to ATEX & IECEx (default)
Enclosure colour: [x] R
S		 Red
Special colour - contact sales
Example: GNExL2R016[m][s][v][x]
GNExL2R016B1A1R
  GNExL2 16 Ohm Brass stopping plug, 304 stainless steel mounting
bracket,approved to ATEX & IECEx in a red housing.

Coding

  • II 2G Ex d IIC T4 Ta. -60° to +50°C
  • II 2G Ex d IIC T3 Ta. -60° to +65°C
  • II 2G Ex d IIB T6 Ta. -60° to +50°C
  • II 2G Ex d IIB T5 Ta. -60° to +65°C
Csfm Ul_badge_-_certified Ul Culs-approval Ce-approval
1-23-055

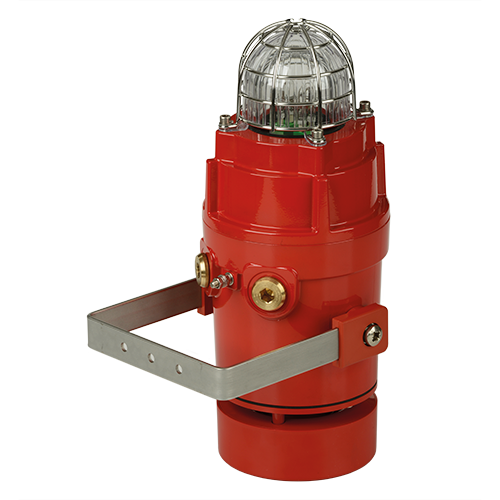

D1xC1X05R Radial Alarm Horn & Xenon Strobe

115dB(A) horn & 5 Joule Xenon. The D1xC1X05R is a high output alarm horn sounder with omni-directional radial horn combined with a 500,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xC1X05R is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications. The Class I DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon).

The explosion proof horn strobe allows simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently selectable. Each of the 4 stage/channels can be remotely triggered e.g. via an external relay.

Specification


Alarm Horn:
Maximum output: 115dB(A) @ 1 metre [106dB(A) @ 10ft/3m]
Nominal output: 110dB(A) @ 1m +/- 3dB - Tone 2 [101dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A)
Effective range: 125m/410ft @ 1KHz
Supply Voltages: 24Vdc; 115Vac; 230Vac
Stage switching: DC units: negative or positive
AC units: common supply line
Strobe Beacon:
Energy: 5 Joules (5Ws)
Flash rates: Option 1: 1Hz (60 fpm)
Option 2: 1.5Hz (90 fpm)
Option 3: Double Strike
Peak Candela: 500,000 cd - calculated from energy (J)
Effective Intensity: 250 cd - calculated from energy (J)
Peak Candela: 46,976 cd* - measured ref. to I.E.S.
Effective Intensity: 143 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life : Emissions are reduced to 70% after 5 million flashes
General:
Ingress protection: EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material: Marine grade aluminium LM6- copper free
Chromated & powder coated - corrosion proof
Colour: Red (RAL3000), Grey (RAL7038)
Cable entries: 1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Grounding stud: M5
Operating temp: 24Vdc & 115Vac: -40° to +70°C [-40° to +158°F]
230Vac: -40° to +55°C [-40° to +131°F]
Storage temp: -50° to +70°C [-58° to +158°F]
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 4.9kg/10.9lbs

Current Consumption

Voltage: Range: Alarm Horn Xenon Strobe Combined
24V dc 20-28Vdc 217mA 322mA 539mA
115V ac 110-120Vac
50/60Hz		 76mA 129mA 206mA
230V ac 220-240Vac
50/60Hz		 53mA 79mA 132mA

Part Codes

Version: Part code:
Product type: D1xC1X05
Horn type: R Omni-directional radial horn
Voltage: DC024
AC115
AC230		 20-28V dc
110-120V ac
220-240V ac
Cable Entry Type:[e] A
B
C		 1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Adaptor/Stopping
plug material: [m]		 B
N
S		 Brass
Nickel Plated
Stainless Steel
Bracket/Guard material: [s] 1
2
3
4		 A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1
D1		 Gas environments Class I/Zone1
Dust environments Class II/Zone 20
Enclosure colour: [x] G
R		 Grey RAL7038
Red RAL3000
Lens colour: [y] A, B, C, G
M, R, Y		 Amber, Blue, Clear, Green
Magenta, Red, Yellow
Example: D1xC1X05RAC230 [e][m][s][v][x][y]
D1xC1X05RAC230AB1A1R/A
Ratings:
A1: Gas version
NEC / CEC: Class I Div 1 ABCD T5/T6 Ta -40°C to +70/+55°C
Class I Div 2 ABCD T5/T6 Ta -40°C to +70/+55°C
Class I Zone 1, 2 IIC T5/T6 Ta -40°C to +70/+55°C
D1: Dust version
NEC / CEC: Class II Div 1 FG T4/T4A Ta -40°C to +55/+40°C
Class II Div 2 FG T4/T4A Ta -40°C to +55/+40°C
Class III Div 1&2
Zone 20, 21, 22 IIIB T4/T4A Ta -40°C to +55/+40°C

Coding

  • A1: Gas version
    NEC / CEC:
    Class I Div 1 ABCD T5/T6 Ta -40°C to +70/+55°C
    Class I Div 2 ABCD T5/T6 Ta -40°C to +70/+55°C
    Class I Zone 1, 2 IIC T5/T6 Ta -40°C to +70/+55°C
  • D1: Dust version
    NEC / CEC:
    Class II Div 1 FG T4/T4A Ta -40°C to +55/+40°C
    Class II Div 2 FG T4/T4A Ta -40°C to +55/+40°C
    Class III Div 1 & 2
    Zone 20, 21, 22 IIIB T4/T4A Ta -40°C to +55/+40°C
  • Protection concept: Ex d / AEx d

Effective Candela lens colour factor


Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3 Stage 4
T1  ↓ 1000 Continuous PFEER Toxic Gas Any T2 T44
T2  ↓ 1200/500 @ 1Hz Sweeping DIN/PFEER P.T.A.P. Any T3 T44
T3  ↓ 1000 @ 0.5Hz (1s on, 1s off) Intermittent PFEER Gen. Alarm Any T2 T44
T4  ↓ 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s NF C 48-265 Any T24 T1
T5  ↓ 544(100mS)/440 (400mS) NF S 32-001 Any T19 T1
T6  ↓ 1500/500 - (0.5s on , 0.5s off) x3 + 1s gap AS4428 Any T44 T1
T7  ↓ 500-1500Hz Sweeping 2 sec on 1 sec off AS4428 Any T44 T1
T8  ↓ 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) NEN 2575 Any T24 T35
T9  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a Any T34 T1
T10  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) IMO Code 1a Any T34 T1
T11  ↓ 420(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal Any T1 T8
T12  ↓ 1000(0.5s on, 0.5s off)x3 + 1s gap ISO 8201 Temporal Any T1 T8
T13  ↓ 422/775 (0.85 on, 0.5 off) x3 + 1s gap NFPA Temporal Any T1 T8
T14  ↓ 1000/2000 @ 1Hz - Singapore Any T3 T35
T15  ↓ 300 Continuous Any T24 T35
T16  ↓ 440 Continuous Any T24 T35
T17  ↓ 470 Continuous Any T24 T35
T18  ↓ 500 Continuous IMO code 2 (Low) Any T24 T35
T19  ↓ 554 Continuous Any T24 T35
T20  ↓ 660 Continuous Any T24 T35
T21  ↓ 800 Continuous IMO code 2 (High) Any T24 T35
T22  ↓ 1200 Continuous Any T24 T35
T23  ↓ 2000 Continuous Any T3 T35
T24  ↓ 2400 Continuous Any T20 T35
T25  ↓ 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent Any T44 T8
T26  ↓ 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent Any T44 T8
T27  ↓ 470 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T44 T8
T28  ↓ 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent Any T24 T8
T29  ↓ 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent Any T44 T8
T30  ↓ 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent Any T24 T8
T31  ↓ 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent Any T24 T8
T32  ↓ 745 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T33  ↓ 800 (0.25s on, 1.00s off) Intermittent Any T24 T8
T34  ↓ 800 @ 2Hz (0.25s on, 0.25s off) IMO code 3.a (High) Any T24 T8
T35  ↓ 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T36  ↓ 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T24 T8
T37  ↓ 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T24 T8
T38  ↓ 363/518 @ 1Hz (0.50s/0.50s) Alternating Any T8 T19
T39  ↓ 450/500 @ 2Hz (0.25s/0.25s) Alternating Any T8 T19
T40  ↓ 554/440 @ 1Hz (0.50s/0.50s) Alternating Any T24 T19
T41  ↓ 554/440 @ 0.65Hz (0.76s/0.76s) Alternating Any T8 T19
T42  ↓ 561/760 @ 0.83Hz (0.60s/0.60s) Alternating Any T8 T19
T43  ↓ 780/600 @ 0.96Hz (0.52s/0.52s) Alternating Any T8 T19
T44  ↓ 800/1000 @ 2Hz (0.25s/0.25s) Alternating Any T24 T19
T45  ↓ 970/800 @ 2Hz (0.25s/0.25s) Alternating Any T8 T19
T46  ↓ 800/1000 @ 0.875Hz (0.57s/0.57s) Alternating Any T24 T19
T47  ↓ 2400/2900 @ 2Hz (0.25s/0.25s) Alternating Any T24 T19
T48  ↓ 500/1200 @ 0.3Hz (1.67s/1.67s) Sweeping Any T24 T12
T49  ↓ 560/1055 @ 0.18Hz (2.73s/2.73s) Sweeping Any T24 T12
T50  ↓ 560/1055 @ 3.3Hz (0.15s/0.15s) Sweeping Any T24 T12
T51  ↓ 600/1250 @ 0.125Hz (4s/4s) Sweeping Any T24 T12
T52  ↓ 660/1200 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T53  ↓ 800/1000 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T54  ↓ 800/1000 @ 7Hz (0.07s/0.07s) Sweeping Any T24 T12
T55  ↓ 800/1000 @ 50Hz (0.01s/0.01s) Sweeping Any T24 T12
T56  ↓ 2400/2900 @ 7Hz (0.07s/0.07s) Sweeping Any T24 T12
T57  ↓ 2400/2900 @ 1Hz (0.50s/0.50s) Sweeping Any T24 T12
T58  ↓ 2400/2900 @ 50Hz (0.01s/0.01s) Sweeping Any T24 T12
T59  ↓ 2500/3000 @ 2Hz (0.25s/0.25s) Sweeping Any T24 T12
T60  ↓ 2500/3000 @ 7.7Hz (0.65s/0.65s) Sweeping Any T24 T12
T61  ↓ 800Hz Motor Siren Any T24 T12
T62  ↓ 1200Hz Motor Siren Any T24 T12
T63  ↓ 2400Hz Motor Siren Any T24 T12
T64  ↓ Simulated Bell Any T21 T12
Country specific or custom tone configurations and alarm frequencies are available upon request.
