E2xS2F Ex E2S Vietnam Loa báo động ABS _Không tia lửa_ Alarm Sounder/Horn

Xuất sứ: UK

Nhà cung cấp: STC Vietnam

Hãng sản xuất: E2S Warning Signals VietNam

Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải

Liên hệ tư vấn

Mr. Vương

vuong@songthanhcong.com

0372538207

live:.cid.d22573c25f91d309

Thông tin sản phẩm
Thông số kỹ thuật

1-32-020

Specify Options & Request Quote

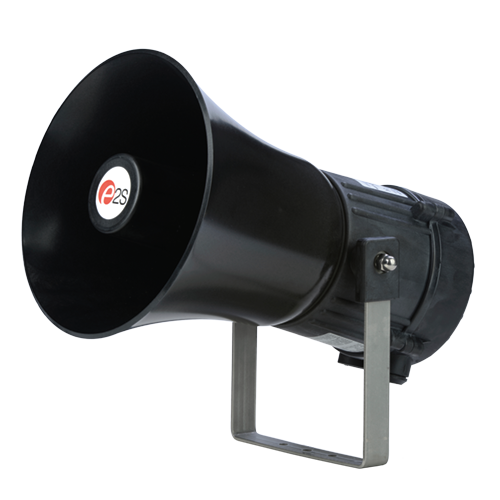

E2xS2F Alarm Sounder/Horn

The hazardous area E2xS2F alarm horn sounder is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.

With a maximum sound level output of 121dB(A) at 1 metre and a choice of 45 alarm tones and 3 remotely selectable stages the E2xS2F alarm sounder horn is suitable for all signalling applications with high ambient noise levels.
The E2x range features enclosures manufactured from lightweight, corrosion proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.

Specification


Maximum output:	121dB(A) @ 1 metre [112dB(A) @ 10ft/3m]
Nominal output:	117dB(A) @ 1m +/- 3dB - Tone 2 [108dB(A) @ 10ft/3m]
No. of tones:	45 (UKOOA/PFEER compliant)
No. of stages:	3
Volume control:	Max. 117dB(A); Min. 111dB(A) - Tone 2
Effective range:	200m/656ft @ 1KHz
Voltages DC:	24Vdc (10-30Vdc); 48Vdc
Voltages AC:	115Vac; 230Vac
Ingress protection:	IP rating per EN60079-0:IP64 IP rating per EN60529:IP66 Type rating per UL50E/NEMA250:4/4X/13
Enclosure material:	UL94V0 PPS & ABS
Lens material:	Borosilicate glass dome with PC prismatic lens cover.
Guard:	Stainless Steel dome guard as standard
Cable entries:	Dual M20x1.5 or 1/2"NPT
Terminals:	0.5 - 2.5mm² (20-14 AWG)
Line monitoring:	Blocking diode included EOL can be factory fitted
Operating temp:	-20 to +55°C [-4° to +131°F]
Storage temp:	-40 to +70°C [-40° to +158°F]
Relative humidity:	90% at 20°C [68°F]
Weight:	DC: 2.75kg/6.05Ibs AC: 3.25kg/7.15Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.

Current Consumption

Version:		Voltage:	Current:
24V dc		10-30vdc	280mA
48V dc		38-58vdc	215mA
115V ac	50/60Hz	+/-10%	142mA
230V ac	50/60Hz	+/-10%	76mA

Part Codes

Part Code:	Ident.:	Description:
Product type:	E2xS2	E2xS2 alarm hrn sounder
Flare type:	F	Flare Horn
Voltage:	AC115 AC230 DC024 DC048	115V ac 50/60Hz 230V ac 50/60Hz 24V dc (10-30V dc) 48V dc
Cable entries:	A B C	M20x1.5 & ½” NPT M20x1.5 & M20x1.5 ½” NPT & ½” NPT
Stopping plug material:	N	Nylon
Bracket:	1 2	304 (A2) Stainless Steel 316 (A4) Stainless Steel
Approvals:	A1	UL, cULs, IECEx & ATEX
Enclosure:	B	Black
e.g: E2xS2FAC230AN1A1B		E2xS2 alarm horn sounder with flare horn in 230Vac with one M20 cable entry and one 1/2"NPT entry. Approved to IECEx, ATEX & UL. Black enclosure.
NOTE:	The E2xS2F supersedes the E2xS121 alarm horn sounder and remains compatible with all existing installations

Coding

IECEx / ATEX:
II 3G Ex nA IIC T4 Gc Ta -20°C to +55°C
II 3D Ex tc IIIC T85°C Dc Ta -20°C to +55°C
NEC Class / Zone ratings US:
Class I Zone 2 AEx nA IIC T4 Gc Ta -20°C to +55°C
Zone 22 AEx tc IIIC T85°C Dc Ta -20°C to +55°C
CEC Class / Zone ratings Canada
Ex nA IIC T2 Gc Ta -20°C to +55°C
Ex tc IIIC 85°C Dc Ta -20°C to +55°C
NEC & CEC Class / Division Ratings for US / Canada
Class I, Div 2, ABCD T3C Ta -20°C to +55°C
Class I, Div 2, ABCD T4 Ta -20°C to +40°C
Class II, Div 2, FG T6 Ta -20°C to +55°C
Class II, Div 2, FG T6 Ta -20°C to +55°C

Tone Table

Stage 1	WAV file	Frequency Description.	Stage 2	Stage 3
T 1	↓	340 Hz Continuous	T 2	T 5
T 2	↓	800/1000Hz @ 0.25 sec Alternating	T 17	T 5
T 3	↓	500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop	T 2	T 5
T 4	↓	800/1000Hz @ 1Hz Sweeping	T 6	T 5
T 5	↓	2400Hz Continuous	T 3	T 20
T 6	↓	2400/2900Hz @ 7Hz Sweeping	T 7	T 5
T 7	↓	2400/2900Hz @ 1Hz Sweeping	T 10	T 5
T 8	↓	500/1200/500Hz @ 0.3Hz Sweeping	T 2	T 5
T 9	↓	1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.	T 15	T 2
T 10	↓	2400/2900Hz @ 2Hz Alternating	T 7	T 5
T 11	↓	1000Hz @ 1Hz Intermittent	T 2	T 5
T 12	↓	800/1000Hz @ 0.875Hz Alternating	T 4	T 5
T 13	↓	2400Hz @ 1Hz Intermittent	T 15	T 5
T 14	↓	800Hz 0.25sec on, 1 sec off Intermittent	T 4	T 5
T 15	↓	800Hz Continuous	T 2	T 5
T 16	↓	660Hz 150mS on, 150mS off Intermittent	T 18	T 5
T 17	↓	544Hz (100mS)/440Hz (400mS) - NF S 32-001	T 2	T 27
T 18	↓	660Hz 1.8sec on, 1.8sec off Intermittent	T 2	T 5
T 19	↓	1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265	T 2	T 5
T 20	↓	660Hz Continuous	T 2	T 5
T 21	↓	554Hz/440Hz @ 1Hz Alternating	T 2	T 5
T 22	↓	544Hz @ 0.875 sec. Intermittent	T 2	T 5
T 23	↓	800Hz @ 2Hz Intermittent	T 6	T 5
T 24	↓	800/1000Hz @ 50Hz Sweeping	T 29	T 5
T 25	↓	2400/2900Hz @ 50Hz Sweeping	T 29	T 5
T 26	↓	Bell	T 2	T 15
T 27	↓	554Hz Continuous	T 26	T 5
T 28	↓	440Hz Continuous	T 2	T 5
T 29	↓	800/1000Hz @ 7Hz Sweeping	T 7	T 5
T 30	↓	300Hz Continuous	T 2	T 5
T 31	↓	660/1200Hz @ 1Hz Sweeping	T 26	T 5
T 32	↓	Two T chime.	T 26	T 15
T 33	↓	745Hz @ 1Hz Intermittent	T 2	T 5
T 34	↓	1000 & 2000Hz @ 0.5 sec Alternating - Singapore	T 38	T 45
T 35	↓	420Hz @ 0.625 sec Australian Alert	T 36	T 5
T 36	↓	500-1200Hz 3.75sec /0.25sec. Australian Evac.	T 35	T 5
T 37	↓	1000Hz Continuous - PFEER Toxic Gas	T 9	T 45
T 38	↓	2000Hz Continuous	T 34	T 45
T 39	↓	800Hz 0.25sec on, 1 sec off Intermittent	T 23	T 17
T 40	↓	544Hz (100mS)/440Hz (400mS) - NF S 32-001	T 31	T 27
T 41	↓	Motor Siren - slow rise to 1200 Hz	T 2	T 5
T 42	↓	Motor Siren - slow rise to 800 Hz	T 2	T 5
T 43	↓	1200 Hz Continuous	T 2	T 5
T 44	↓	Motor Siren - slow rise to 2400 Hz	T 2	T 5
T 45	↓	1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm	T 38	T 34
Country specific or custom tone configurations and alarm frequencies are available upon request
