E2xL25F Ex E2S Vietnam Loa phóng thanh 25W _Không tia lửa_ PA Loudspeaker 25W
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải
Mr. Vương

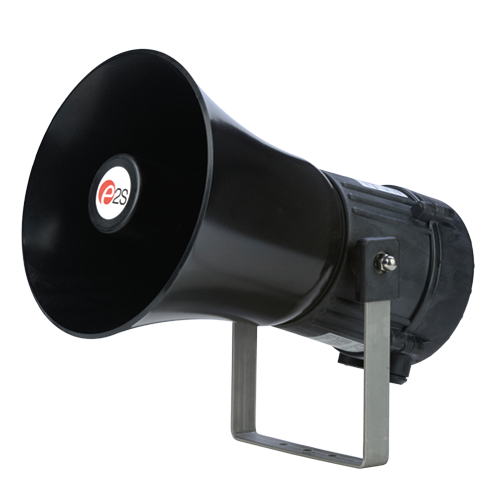

E2xL25F PA Loudspeaker 25W
The hazardous area E2xL25F PA loudspeaker is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
The E2xL25F is available with either a 70V or 100V line transformer or as a low impedance loudspeaker.
The E2x range features enclosures manufactured from lightweight, corrosion proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.
Specification
| SPL: | 111dB +/-3dB @ 1w @ 1m (Pink) 124dB +/-3dB @ 25w @ 1m (Rated) |
| Rated power: | 25 Watts RMS |
| 70v line tappings: | 25w / 12.5w / 6w / 2w tappings (z=196 Ohms / 392 Ohms / 816.67 Ohms / 2.45k Ohms) |
| 100v line tappings: | 25w / 12.5w / 6w / 2w tappings (z=400 Ohms / 800 Ohms / 1.67k Ohms / 5k Ohms) |
| Low impedence: | 8 Ohm or 16 Ohm |
| Dispersion: | 130° @ 1kHz & 32° @ 4kHz |
| Frequency range: | 300Hz to 8000 Hz |
| DC Line monitoring: | 2.2µF Capacitor (Transformer version) |
| Ingress protection: | IP rating per EN60079-0:IP64 IP rating per EN60529:IP66 Type rating per UL50E/NEMA250:4/4X/13 |
| Enclosure material: | UL94V0 PPS & ABS |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Operating temp: | -20 to +55°C [-4° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | Low impedance: 2.75kg/6.05Ibs Transformer: 3.25kg/7.15Ibs |
| *SPL data +/-3dB(A). Measured at optimum voltage. | |
Part Codes
| Part Code: | Ident.: | Description: | |
|---|---|---|---|
| Product type: | E2xL25 | ||
| Horn type: | F | Flare Horn | |
| Type: | V100 V070 R008 R016 |
100V Line 70V Line 8 Ohm Low impedance 16 Ohm Low impedance |
|
| Cable entries: | A B C |
M20x1.5 & ½” NPT M20x1.5 & M20x1.5 ½” NPT & ½” NPT |
|
| Stopping plug material: | N | Nylon | |
| Bracket: | 1 2 |
304 (A2) Stainless Steel 316 (A4) Stainless Steel |
|
| Approvals: | A1 | UL, cULs, IECEx & ATEX | |
| Enclosure: | B | Black | |
| e.g: E2xL25FV100AN1A1B | E2xL25 PA Loudspeaker with flare horn. 100V line transformer with one M20 cable entry and one 1/2"NPT entry. Approved to IECEx,ATEX & UL. Black enclosure. |
||
Coding
- IECEx / ATEX:
II 3G Ex nA IIC T2 Gc Ta -20°C to +55°C
II 3D Ex tc IIIC 85°C Dc Ta -20°C to +40°C
II 3D Ex tc IIIC 100°C Dc Ta -20°C to +55°C - NEC Class / Zone ratings US:
Class I Zone 2 AEx nA IIC T2 Gc Ta -20°C to +55°C
Zone 22 AEx tc IIIC T85°C Dc Ta -20°C to +40°C
Zone 22 AEx tc IIIC 100°C Dc Ta -20°C to +55°C - CEC Class / Zone ratings Canada
Ex nA IIC T2 Gc Ta -20°C to +55°C
Ex tc IIIC 85°C Dc Ta -20°C to +40°C
Ex tc IIIC 100°C Dc Ta -20°C to +55°C - NEC & CEC Class / Division Ratings for US / Canada
Class I, Div 2, ABCD T2C Ta -20°C to +55°C
Class I, Div 2, ABCD T2D Ta -20°C to +40°C
Class II, Div 2, FG T5 Ta -20°C to +55°C
Class II, Div 2, FG T6 Ta -20°C to +40°C
Class III, Div 1&2 Ta -20°C to +55°C
E2xL25F PA Loudspeaker 25W
- Very large termination area.
- Ratchet adjustable stainless steel ‘U’ bracket.
- Transformer type fitted with thermal fuse
- Complies with BS5839 part 8
Approvals
-
ATEX certificate: DEMKO 06 ATEX 0421554X,
-
IECEx certficate: IECEx ULD 14.0012X
-
UL/cUL File ref: E230764
-
CSFM listing: 7136-2279:0505
