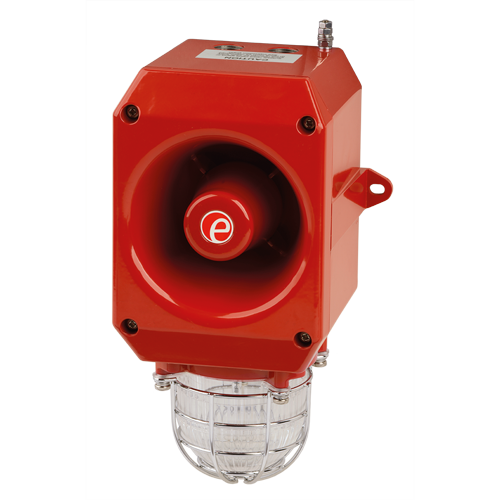

D2xC1X05 Alarm Horn Sounder & Xenon Strobe Beacon

The D2xC1X05 features a high output, 116dB(A) alarm horn sounder combined with a 5 Joule Xenon strobe beacon.
Low current consumption and high SPL in a robust Type 4/4X, IP66 enclosure ensure the D2xC1X05 is suitable for all haz loc fire alarm system and general signalling applications.

The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments.
One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2.
UL & cUL approved 24Vdc version for fire alarm use.

Specification


Horn Sounder:
Maximum output:	116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
Nominal output:	112dB(A) @ 1m +/- 3dB - Tone 2 [103dB(A) @ 10ft/3m]
No. of tones:	64 (UKOOA / PFEER compliant)
No. of stages:	4
Volume control:	Adjustable -12dB(A) [Tone 2]
Effective range:	125m/410ft @ 1KHz
Stage switching:	DC units - Positive or Negative line. AC units - common supply line
Strobe Beacon:
Energy:	5 Joules (5Ws)
Flash rate:	1Hz (60 fpm)
Peak Candela:	500,000 cd - calculated from energy (J)
Effective Intensity cd:	250 cd - calculated from energy (J)
Peak Candela:	33,410 cd - measured ref. to I.E.S.
Effective Intensity:	94.78 cd - measured ref. to I.E.S.
Lens colours:	Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life:	Emissions are reduced to 70% after 8 million flashes
General:
Voltages DC:	24V dc [20-28Vdc]; 48V dc [38-58Vdc]
Voltages AC:	115V ac 50/60Hz; 230V ac 50/60Hz
Ingress protection:	EN60529: IP66 UL50E / NEMA250: 4 / 4X / 3R / 13
Housing material:	Marine grade aluminium Al Si12 Cu
Colour:	Red (RAL3000), grey (RAL7038)
Cable entries:	2 x M20 x 1.5mm threaded gland entries
Terminals:	0.5 - 2.5mm² (20-14 AWG)
Grounding stud:	M5
Operating temp:	-40 to +70°C [-40° to +158°F] - Class I Div 2 -40 to +50°C [-40° to +122°F] - All other approvals
Relative humidity:	95%
Weight:	DC: 2.80kg/6.16Ibs AC:3.10kg/6.82Ibs

Part Codes

Version:	Part code:
Product type:	D2xC1X05	Haz Loc alarm horn sounder & Xenon strobe beacon
Voltage:	DC024 DC048 AC115 AC230	24V dc - UL/cUL Fire Alarm 48V dc 115V ac 230V ac
Cable Entry Type:[e] Note:	A B C D E F G	2 x M20x1.5mm 2 x 1/2" NPT - adaptors 2 x 3/4" NPT - adaptors 2 x M25x1.5mm - adaptors 1 x 1/2" NPT - adaptor 1 x 3/4" NPT - adaptor 1 x M25x1.5mm - adaptor M20 stopping plugs supplied for unused entries
Adaptor/Stopping plug material: [m]	B N S	Brass Nickel Plated Stainless Steel
Variable: [s]	1 2	A2 (304) Stainless Steel Lens Guard A4 (316) Stainless Steel Lens Guard
Product version: [v]	A1	UL, cUL, IECEx & ATEX
Enclosure colour: [x]	R G	Red RAL3000 Grey RAL7038
Lens colour: [y]	A B C G M R Y	Amber Blue Clear Green Magenta Red Yellow

Alarm sounder

Version:		Voltage:	Current:
24V dc		10-30V dc	313mA [at nominal voltage]
48V dc		38-58V dc	181mA [at nominal voltage]
115V ac	50/60Hz	+/-10%	90mA
230V ac	50/60Hz	+/-10%	52mA

Coding

NEC / CEC: Class I Div 2 ABCD T2B Ta -40°C to +70°C
Class I Div 2 ABCD T2C Ta -40°C to +55°C
Class I Div 2 ABCD T2D Ta -40°C to +40°C
Class II Div 2 FG T5 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C
NEC: Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 120°C Dc (Ta -40°C to +50°C)
CEC: Class I Zone 2 Ex nA IIC T2B Gc X (Ta -40°C to +50°C)
Class I Zone 2 Ex nA IIC T2C Gc X (Ta -40°C to +45°C)
Zone 22 Ex tc IIIC 120°C Dc (Ta -40°C to +50°C)
Class II Div 2 EFG T4A Ta -40°C to +50°C
IECEx & ATEX: II 3G Ex nA IIC T2 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 90°C Dc (Ta -40°C to +50°C)

Combined

Version:		Voltage:	Current:
24V dc		20-28V dc	518mA [at nominal voltage]
48V dc		42-54V dc	294mA [at nominal voltage]
115V ac	50/60Hz	+/-10%	147mA
230V ac	50/60Hz	+/-10%	61mA
Voltage & current details for Xenon & Horn components when powered from common power source

Xenon beacon

Version:		Voltage:	Current:
24V dc		20-28V dc	250mA [at nominal voltage]
48V dc		42-54V dc	149mA [at nominal voltage]
115V ac	50/60Hz	+/-10%	70mA
230V ac	50/60Hz	+/-10%	35mA

Tone Table

Stage 1	WAV file	Frequency Description.	Stage 2	Stage 3	Stage 4
T 1	↓	1000 Continuous - PFEER Toxic Gas	T 3	T 2	T 44
T 2	↓	1200/500 @ 1Hz Sweeping - DIN / PFEER P.T.A.P.	T 1	T 3	T 44
T 3	↓	1000 @ 0.5Hz (1s on, 1s off) Intermittent - PFEER Gen. Alarm	T 1	T 2	T 44
T 4	↓	1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s - NF C 48-265	T 44	T 24	T 1
T 5	↓	544(100mS)/440 (400mS) - NF S 32-001	T 52	T 19	T 1
T 6	↓	1500/500 - (0.5s on , 0.5s off) x3 + 1s gap - AS4428	T 7	T 44	T 1
T 7	↓	500-1500Hz Sweeping 2 sec on 1 sec off - AS4428	T 6	T 44	T 1
T 8	↓	500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) - NEN 2575	T 44	T 24	T 35
T 9	↓	1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a	T 18	T 34	T 1
T 10	↓	1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a	T 21	T 34	T 1
T 11	↓	420(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal	T 44	T 1	T 8
T 12	↓	1000(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal	T 44	T 1	T 8
T 13	↓	422/775 - (0.85 on, 0.5 off) x3 + 1s gap - NFPA Temporal	T 44	T 1	T 8
T 14	↓	1000/2000 @ 1Hz - Singapore	T 23	T 3	T 35
T 15	↓	300 Continuous	T 44	T 24	T 35
T 16	↓	440 Continuous	T 44	T 24	T 35
T 17	↓	470 Continuous	T 44	T 24	T 35
T 18	↓	500 Continuous - IMO code 2 (Low)	T 44	T 24	T 35
T 19	↓	554 Continuous	T 64	T 24	T 35
T 20	↓	660 Continuous	T 44	T 24	T 35
T 21	↓	800 Continuous - IMO code 2 (High)	T 44	T 24	T 35
T 22	↓	1200 Continuous	T 44	T 24	T 35
T 23	↓	2000 Continuous	T 15	T 3	T 35
T 24	↓	2400 Continuous	T 48	T 20	T 35
T 25	↓	440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent	T 1	T 44	T 8
T 26	↓	470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent	T 1	T 44	T 8
T 27	↓	470 @ 5Hz (0.10s on, 0.10s off) Intermittent	T 1	T 44	T 8
T 28	↓	544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent	T 44	T 24	T 8
T 29	↓	655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent	T 1	T 44	T 8
T 30	↓	660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent	T 44	T 24	T 8
T 31	↓	660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent	T 30	T 24	T 8
T 32	↓	745 @ 1Hz (0.50s on, 0.50s off) Intermittent	T 44	T 24	T 8
T 33	↓	800 (0.25s on, 1.00s off) Intermittent	T 53	T 24	T 8
T 34	↓	800 @ 2Hz (0.25s on, 0.25s off) - IMO code 3.a (High)	T 56	T 24	T 8
T 35	↓	1000 @ 1Hz (0.50s on, 0.50s off) Intermittent	T 44	T 24	T 8
T 36	↓	2400 @ 1Hz (0.50s on, 0.50s off) Intermittent	T 21	T 24	T 8
T 37	↓	2900 @ 5Hz (0.10s on, 0.10s off) Intermittent	T 53	T 24	T 8
T 38	↓	363/518 @ 1Hz (0.50s / 0.50s) Alternating	T 1	T 8	T 19
T 39	↓	450/500 @ 2Hz (0.25s / 0.25s) Alternating	T 1	T 8	T 19
T 40	↓	554/440 @ 1Hz (0.50s / 0.50s) Alternating	T 44	T 24	T 19
T 41	↓	554/440 @ 0.65Hz (0.76s / 0.76s) Alternating	T 1	T 8	T 19
T 42	↓	561/760 @ 0.83Hz (0.60s / 0.60s) Alternating	T 1	T 8	T 19
T 43	↓	780/600 @ 0.96Hz (0.52s / 0.52s) Alternating	T 1	T 8	T 19
T 44	↓	800/1000 @ 2Hz (0.25s / 0.25s) Alternating	T 5	T 24	T 19
T 45	↓	970/800 @ 2Hz (0.25s / 0.25s) Alternating	T 1	T 8	T 19
T 46	↓	800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating	T 53	T 24	T 19
T 47	↓	2400/2900 @ 2Hz (0.25s / 0.25s) Alternating	T 57	T 24	T 19
T 48	↓	500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping	T 44	T 24	T 12
T 49	↓	560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping	T 44	T 24	T 12
T 50	↓	560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping	T 44	T 24	T 12
T 51	↓	600/1250 @ 0.125Hz (4s / 4s) Sweeping	T 44	T 24	T 12
T 52	↓	660/1200 @ 1Hz (0.50s / 0.50s) Sweeping	T 64	T 24	T 12
T 53	↓	800/1000 @ 1Hz (0.50s / 0.50s) Sweeping	T 56	T 24	T 12
T 54	↓	800/1000 @ 7Hz (0.07s / 0.07s) Sweeping	T 57	T 24	T 12
T 55	↓	800/1000 @ 50Hz (0.01s / 0.01s) Sweeping	T 54	T 24	T 12
T 56	↓	2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping	T 57	T 24	T 12
T 57	↓	2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping	T 47	T 24	T 12
T 58	↓	2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping	T 54	T 24	T 12
T 59	↓	2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping	T 44	T 24	T 12
T 60	↓	2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping	T 44	T 24	T 12
T 61	↓	800Hz Motor Siren	T 44	T 24	T 12
T 62	↓	1200Hz Motor Siren	T 44	T 24	T 12
T 63	↓	2400Hz Motor Siren	T 44	T 24	T 12
T 64	↓	Simulated Bell	T 44	T 21	T 12
Country specific or custom tone configurations and alarm frequencies are available upon request.
