E2xB10 E2S Vietnam Đèn Xenon nhấp nháy _ Xenon Strobe 10 Joule
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải
Mr. Vương
1-31-020

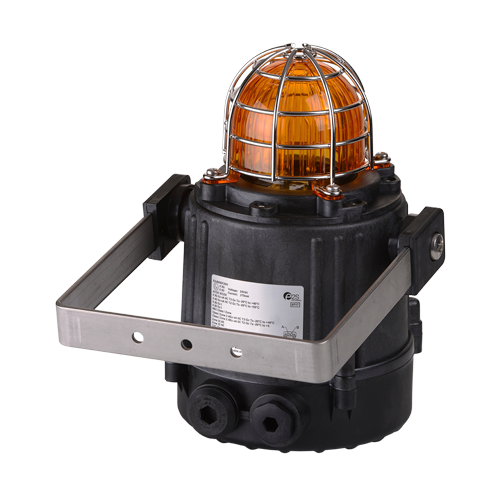

E2xB10 Xenon Strobe 10 Joule
The hazardous area E2xB10 Xenon strobe beacon is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
The E2xB10 is a 10 Joule Xenon strobe beacon with a 1Hz (60 fpm) flash rate.
The E2x range features enclosures manufactured from lightweight, high performance PPS which, with its corrosion proof properties, is suitable for the harshest of environments.
Specification
| Energy: | 10 Joules (10Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 1,000,000 cd - calculated from energy (J) |
| Effective Intensity cd: | 500 cd - calculated from energy (J) |
| Peak Candela: | 61,164 cd* - measured ref. to I.E.S. |
| Effective Intensity cd: | 272 cd* - measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltages DC: | 24Vdc; 48Vdc |
| Voltages AC: | 115Vac; 230Vac |
| Ingress protection: | IP rating per EN60079-0:IP64 IP rating per EN60529:IP66 Type rating per UL50E/NEMA250:4/4X/13 |
| Enclosure material: | UL94V0 PPS & ABS |
| Lens material: | Borosilicate glass dome with PC prismatic lens cover. |
| Guard: | Stainless Steel dome guard as standard |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included EOL can be factory fitted |
| Operating temp: | -20 to +55°C [-4° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 1.48kg/3.25Ibs |
| * All candela data is representative of performance with clear lens at optimum voltage. | |
Current Consumption
| Version: | Voltage: | Current: | |
|---|---|---|---|
| 24V dc | 20-28V dc | 560mA | |
| 48V dc | 42-58V dc | 260mA | |
| 115V ac | 50/60Hz | +/-10% | 185mA |
| 230V ac | 50/60Hz | +/-10% | 107mA |
Part Codes
| Part Code: | Ident.: | Description: | |
|---|---|---|---|
| Product type: | E2xB10 | Xenon Strobe Beacon | |
| Voltage: | AC115 AC230 DC012 DC024 DC048 |
115V ac 50/60Hz 230V ac 50/60Hz 12V dc (10-14V dc) 24V dc (20-28Vdc) 48V dc (42-54V dc) |
|
| Cable entries: [e] | A B C |
M20x1.5 & ½” NPT M20x1.5 & M20x1.5 ½” NPT & ½” NPT |
|
| Stopping plug material: [m] | N | Nylon | |
| Bracket & Guard: [s] | 1 2 |
304 (A2) Stainless Steel 316 (A4) Stainless Steel |
|
| Version: [v] | A1 | UL, cULs, IECEx & ATEX | |
| Enclosure: [x] | B | Black | |
| Lens colour: [y] | A, B, C G, M, R Y |
Amber, Blue, Clear Green, Magenta, Red Yellow |
|
| e.g: E2xB10DC024BN1A1B/R | E2xB10 Xenon Beacon in 24Vdc with dual M20 entries, nylon stopping plug, UL, cULs, IECEx & ATEX approved Black enclosure with Red lens |
||
| Also available as the E2xC1X05 combined alarm sounder and Xenon beacon and the E2xC1LD2 combined alarm sounder and LED beacon. |
|||
Coding
- ATEX / IECEx certification
II 3G Ex nA IIC T2 Gc Ta -20°C to +55°C
II 3D Ex tc IIIC 105°C Dc Ta -20°C to +40°C
II 3D Ex tc IIIC 120°C Dc Ta -20°C to +55°C - NEC Class / Zone ratings US
Class I Zone 2 AEx nA IIC T2 Gc Ta -20°C to +55°C
Zone 22 AEx tc IIIC 105°C Dc Ta -20°C to +40°C
Zone 22 AEx tc IIIC 120°C Dc Ta -20°C to +55°C - CEC Class / Zone ratings Canada
Ex nA IIC T2 Gc Ta -20°C to +55°C
Ex nA IIC T2 Gc Ta -20°C to +55°C
Ex tc IIIC 105°C Dc Ta -20°C to +40°C - NEC & CEC Class / Division Ratings for US / Canada
Class I, Div 2, ABCD T2C Ta -20°C to +55°C
Class I, Div 2, ABCD T2D Ta -20°C to +40°C
Class II, Div 2, FG T5 Ta -20°C to +55°C
Class II, Div 2, FG T6 Ta -20°C to +40°C
Class III Ta -20°C to +55°C
E2xB10 Xenon Strobe 10 Joule
- Very large termination area.
- Ratchet adjustable stainless steel ‘U’ bracket.
- Stainless Steel dome guard as standard
- Xenon tube mechanically secured against vibration & shock.
- User replaceable Xenon tube assembly.
- Duplicate cable terminations (in & out for daisy-chain installations).
- Tropicalisation available on request.
Approvals
-
ATEX certificate: DEMKO 06 ATEX 0421554X
-
IECEx certficate: IECEx ULD 14.0012X
-
UL/cUL File ref: E245313
