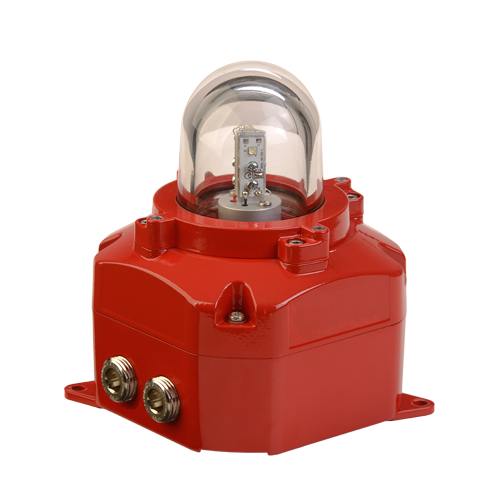

D2xB1LD2-H UL1971 Haz Loc Synchronized LED Light
The haz loc D2xB1LD2-H is an auto-synchronizing LED light/beacon tested to UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications. The unit is UL/cUL approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 hazardous area applications.
The D2x1BLD2-H utilizes an array of high power Cree® LED's, orientated to optimize visibility in any direction. Multiple D2xB1LD2-H units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The D2xB1LD2-H contains a supervisory diode and duplicated pluggable terminals that not only simplify installation but also enable a 4 wire connection. UL1971 effective candela rating of 38.38cd.
Specification
| Source: | Array of 4 x High Power Cree® LED's |
| Modes: | 1Hz flash (60 fpm) 1.3Hz flash (80 fpm) 2Hz flash (120 fpm |
| Eff. Intensity cd: | 38.38 cd UL1971 Public mode fire |
| Eff. Intensity cd: | 180 cd UL1638 General signaling |
| Peak Intensity cd: | 300,000 cd |
| LED life: | >60,000 hours |
| Synchronization: | Flash rates synchronize for a minimum of 2 hours per UL1971 |
| Voltage: | 24V dc (16-33V dc) |
| In-rush: | 1.88A for 2ms |
| Ingress protection: | IP rating per EN60529:IP66 Type rating per UL50E/NEMA250:4/4X/3R/13 |
| Enclosure material: | Marine grade LM6 aluminum alloy |
| Enclosure colour: | Red (RAL3000) |
| Lens material: | Borosilicate glass |
| Cable entries: | 2 x M20x1.5, 2 x 1/2"NPT, 1 x 3/4"NPT |
| Stopping plugs: | Nickel Plated Brass plugs included |
| Ground/Earth stud: | M5 |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included EOL can be factory fitted |
| Operating temp: | -40 to +50°C [-40° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 95% |
| Weight: | 1.5kg/3.31Ibs |
Current Consumption
| Nominal Voltage: |
Voltage range: |
Flash Rate setting: |
Nominal operating current: |
|---|---|---|---|
24V dc |
Regulated 16-33V dc |
1Hz (60fpm) 1.3Hz (80 fpm) 2Hz (120fpm) |
99.5mA 104mA 103mA |
Part Codes
| Part Code: | Ident.: | Description: | |
|---|---|---|---|
| Product type: | D2xB1LD2 | LED Beacon | |
| Voltage: | DC024 | 24V dc (16-33Vdc) | |
| Cable entries: [e] | M | 2 x 1/2” NPT 2 x M20x1.5 1 x 3/4” NPT |
|
| Stopping plug material: [m] | N | Nickel plated brass | |
| Lens Guard: [s] | 0 | No lens Guard | |
| Version: [v] | H1 | UL, cUL, IECEx & ATEX - UL1971 | |
| Enclosure: [x] | R | Red RAL3000 | |
| Lens colour: [y] | C | Clear | |
| e.g: D2xB1LD2DC024MN0H1R/C | D2xB1LD2-H LED Beacon, 24Vdc nickel plated brass stopping plugs, UL, cUL, IECEx & ATEX approved - UL1971 Red enclosure with Clear lens |
||
| Also available as the D2xC2LD2-H combined alarm horn sounder and LED beacon | |||
Coding
- NEC / CEC: Class I Div 2 ABCD T4 Ta -40°C to +50°C
Class I Div 2 ABCD T4A Ta -40°C to +40°C
Class II Div 2 EFG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C - NEC: Class I Zone 2 AEx nA IIC T4 Gc (Ta -40°C to +50°C)
Zone 22 AEx tc IIIC 75°C Dc (Ta -40°C to +50°C) - CEC: Class I Zone 2 Ex nA IIC T4 Gc X (Ta -40°C to +50°C)
Zone 22 Ex tc IIIC 75°C Dc (Ta -40°C to +50°C) - IECEx & ATEX: II 3G Ex nA IIC T4 Gc (Ta -40°C to +50°C)
II 3D Ex tc IIIC 75°C Dc (Ta -40°C to +50°C)
Multi-function patterns
| Stage 1: [On board] |
Stage 2: [Remote] |
Stage 3: [Remote] |
|
|---|---|---|---|
| Steady High Power | Flashing 1Hz † | Triple Strike | |
| Steady Low Power | Flashing 1Hz † | Triple Strike | |
| Flashing 1Hz † | 2x Flash 2Hz | Triple Strike | |
| Flashing 1.3Hz † | Flashing 2Hz † | Double Strike | |
| Flashing 2Hz † | Triple Strike | Triple Strike | |
| Double Strike | Steady High Power | Triple Strike | |
| Triple Strike | Flashing 2Hz † | Double Strike | |
| † Setting permitted for use as public mode fire alarm device | |||
D2xB1LD2-H UL1971 Haz Loc Synchronized LED Light
- Public mode fire use UL1971, UL1638 & CAN/ULC-S526
- Synchronized for over 2 hours per UL1971
- 38.38 eff. candela - UL1971 Public mode fire
- 180 eff. candela - UL1638 general signaling
- Ultra low operating current of 99.5mA
- In rush limiting circuit <2A
- Choice of three flash rates: 1Hz, 1.3Hz, 2Hz
- Marine grade aluminum enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Duplicate, pluggable cable terminations
- Conduit mounting via integral 3/4" NPT entry
- Surface mounting via user installed lugs
- Dual 1/2"NPT and dual M20 entries
- Supplied with haz loc rated stopping plugs
- Compact footprint
Approvals
- UL/cUL File ref: E245313
- IECEx certficate: IECEx ULD 14.0004X
- ATEX certificate: DEMKO 14 ATEX 4786493904X
- CSFM listing: 7300-2279:0500
