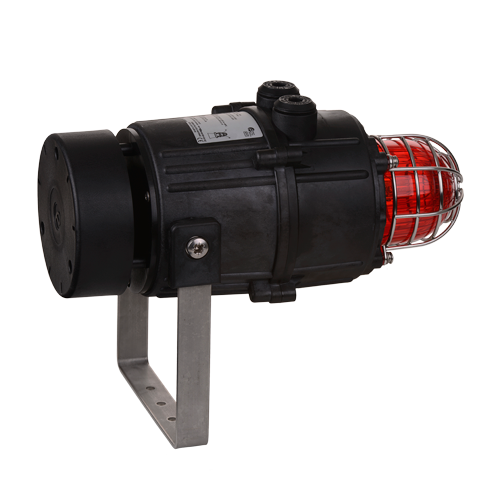

E2xC1X05R Combination Radial Alarm Horn & Xenon Strobe

The hazardous location E2xC1X05R combined alarm sounder and Xenon strobe beacon is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.

The E2xC1X05R combines a 114dB(A) alarm sounder with a 5 Joule Xenon strobe beacon providing a complete audio-visual signalling solution whilst reducing the installation time and costs associated with multiple unit installations.
The E2x range features enclosures manufactured from lightweight, corrosion proof PPS and high impact, fire retardant ABS radial horns (providing omnidirectional sound dispersion); both of which are suitable for the harshest of environments.

Specification


Alarm Horn Sounder:
Maximum output: 114dB(A) @ 1 metre [105dB(A) @ 10ft/3m]
Nominal output: 110dB(A) @ 1m +/- 3dB - Tone 2 [102dB(A) @ 10ft/3m]
No. of tones: 45 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 113dB(A) Min. 105dB(A) - Tone 2
Effective range: 100m/328ft @ 1KHz
Xenon Strobe Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd - calculated from energy (J)
Effect. Intensity cd: 250 cd - calculated from energy (J)
Peak Candela: 34,122 cd* - measured ref. to I.E.S.
Effective Intensity cd: 108 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green,
Magenta, Red & Yellow
General:
Voltages: 24vdc; 48vdc; 115vac; 230vac
Ingress protection: IP rating per EN60079-0:IP64
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/13
Enclosure material: UL94V0 PPS & ABS
Lens material: Borosilicate glass dome with PC prismatic lens cover.
Guard: Stainless Steel dome guard as standard
Cable entries: Dual M20x1.5 or 1/2"NPT
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included
EOL can be factory fitted
Operating temp: -20 to +55°C [-4° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 3.00Kg/6.6Ibs AC: 3.50kg/7.7Ibs
* All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

  Alarm Sounder Xenon Beacon
Version: Voltage: Current: Voltage: Current
24V dc 10-30V dc 284mA 20-28V dc 275mA
48V dc 38-58V dc 146mA 42-58V dc 145mA
115V ac
50/60Hz		 +/-10% 104mA +/-10% 80mA
230V ac
50/60Hz		 +/-10% 54mA +/-10% 30mA
*Candela measurements representative of performance with clear lens at optimum voltage. SPL readings are at nominal voltage, typically +/-3dB and are for indication purposes only. Where applicable, reduce outputs by 5dB when a 10-30vdc unit is supplied 12vdc.

Part Codes

Part Code: Ident.: Description:
Product type: E2xC1X05 Combined alarm horn & Xenon
Type: R Radial omni-directional horn
Voltage: AC115
AC230
DC012
DC024
DC048		 115V ac 50/60Hz
230V ac 50/60Hz
12V dc (10-14Vdc)
24V dc (20-28Vdc)
48V dc (42-54Vdc)
Cable entries:[e] A
B
C		 M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: [m] N Nylon
Bracket & Guard: [s] 1
2		 304 (A2) Stainless Steel
316 (A4) Stainless Steel
Version: [v] A1 UL, cULs, IECEx & ATEX
Enclosure: [x] B Black
Lens colour: [y] A, B, C
G, M, R
Y		 Amber, Blue, Clear
Green, Magenta, Red
Yellow
NOTE: The E2xC1X05 supersedes the E2xCS112-5, maintaining compatibility with existing installations.

Coding

  • ATEX / IECEx certification
    II 3G Ex nA IIC T3 Gc Ta -20°C to +40°C
    II 3G Ex nA IIC T2 Gc Ta -20°C to +55°C
    II 3D Ex tc IIIC 85°C Dc Ta -20°C to +40°C
    II 3D Ex tc IIIC 100°C Dc Ta -20°C to +55°C
  • NEC Class / Zone ratings US
    Class I Zone 2 AEx nA IIC T3 Gc Ta -20°C to +40°C
    Class I Zone 2 AEx nA IIC T2 Gc Ta -20°C to +55°C
    Zone 22 AEx tc IIIC 85°C Dc Ta -20°C to +40°C
    Zone 22 AEx tc IIIC 100°C Dc Ta -20°C to +55°C
  • CEC Class / Zone ratings Canada
    Ex nA IIC T3 Gc Ta -20°C to +40°C
    Ex nA IIC T2 Gc Ta -20°C to +55°C
    Ex tc IIIC 85°C Dc Ta -20°C to +40°C
    Ex tc IIIC 100°C Dc Ta -20°C to +55°C
  • NEC & CEC Class / Division Ratings for US / Canada
    Class I, Div 2, ABCD T2D Ta -20°C to +55°C
    Class I, Div 2, ABCD T3 Ta -20°C to +40°C
    Class II, Div 2, FG T5 Ta -20°C to +55°C
    Class II, Div 2, FG T6 Ta -20°C to +40°C
    Class III, Div 1&2 Ta -20°C to +55°C

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3
T 1  ↓ 340 Hz Continuous T 2 T 5
T 2  ↓ 800/1000Hz @ 0.25 sec Alternating T 17 T 5
T 3  ↓ 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5
T 4  ↓ 800/1000Hz @ 1Hz Sweeping T 6 T 5
T 5  ↓ 2400Hz Continuous T 3 T 20
T 6  ↓ 2400/2900Hz @ 7Hz Sweeping T 7 T 5
T 7  ↓ 2400/2900Hz @ 1Hz Sweeping T 10 T 5
T 8  ↓ 500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5
T 9  ↓ 1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 15 T 2
T 10  ↓ 2400/2900Hz @ 2Hz Alternating T 7 T 5
T 11  ↓ 1000Hz @ 1Hz Intermittent T 2 T 5
T 12  ↓ 800/1000Hz @ 0.875Hz Alternating T 4 T 5
T 13  ↓ 2400Hz @ 1Hz Intermittent T 15 T 5
T 14  ↓ 800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5
T 15  ↓ 800Hz Continuous T 2 T 5
T 16  ↓ 660Hz 150mS on, 150mS off Intermittent T 18 T 5
T 17  ↓ 544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 2 T 27
T 18  ↓ 660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5
T 19  ↓ 1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5
T 20  ↓ 660Hz Continuous T 2 T 5
T 21  ↓ 554Hz/440Hz @ 1Hz Alternating T 2 T 5
T 22  ↓ 544Hz @ 0.875 sec. Intermittent T 2 T 5
T 23  ↓ 800Hz @ 2Hz Intermittent T 6 T 5
T 24  ↓ 800/1000Hz @ 50Hz Sweeping T 29 T 5
T 25  ↓ 2400/2900Hz @ 50Hz Sweeping T 29 T 5
T 26  ↓ Bell T 2 T 15
T 27  ↓ 554Hz Continuous T 26 T 5
T 28  ↓ 440Hz Continuous T 2 T 5
T 29  ↓ 800/1000Hz @ 7Hz Sweeping T 7 T 5
T 30  ↓ 300Hz Continuous T 2 T 5
T 31  ↓ 660/1200Hz @ 1Hz Sweeping T 26 T 5
T 32  ↓ Two T chime. T 26 T 15
T 33  ↓ 745Hz @ 1Hz Intermittent T 2 T 5
T 34  ↓ 1000 & 2000Hz @ 0.5 sec Alternating - Singapore T 38 T 45
T 35  ↓ 420Hz @ 0.625 sec Australian Alert T 36 T 5
T 36  ↓ 500-1200Hz 3.75sec /0.25sec. Australian Evac. T 35 T 5
T 37  ↓ 1000Hz Continuous - PFEER Toxic Gas T 9 T 45
T 38  ↓ 2000Hz Continuous T 34 T 45
T 39  ↓ 800Hz 0.25sec on, 1 sec off Intermittent T 23 T 17
T 40  ↓ 544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 31 T 27
T 41  ↓ Motor Siren - slow rise to 1200 Hz T 2 T 5
T 42  ↓ Motor Siren - slow rise to 800 Hz T 2 T 5
T 43  ↓ 1200 Hz Continuous T 2 T 5
T 44  ↓ Motor Siren - slow rise to 2400 Hz T 2 T 5
T 45  ↓ 1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm T 38 T 34
Country specific or custom tone configurations and alarm frequencies are available upon request.

E2xC1X05R Combination Radial Alarm Horn & Xenon Strobe

  • Very large termination area.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Stainless Steel dome guard as standard
  • Xenon tube mechanically secured against vibration/shock.
  • User replaceable Xenon tube assembly.
  • Automatic synchronisation on multi-sounder system.
  • Duplicate cable terminations (in & out for daisy-chain installations).
  • Tropicalisation available on request.
  • Available with custom tone configurations and frequencies.

Approvals

  • ATEX certificate: DEMKO 06 ATEX 0421554X
  • IECEx certficate: IECEx ULD 14.0012X
  • UL/cUL File ref: E230764

Product Data

1-34-015e2xc1x05r_cat
