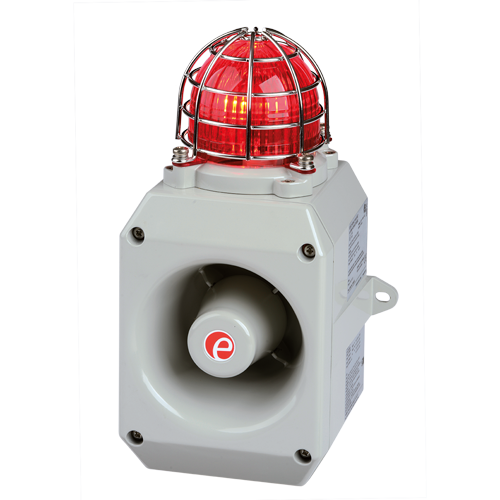

d2xc1x10-loa-va-den-xenon-nhap-nhay-khong-tia-lua-alarm-horn-sounder-xenon-strobe-beacon.png

D2xC1X10 Ex Loa và đèn Xenon nhấp nháy_Không tia lửa_ Alarm Horn Sounder & Xenon Strobe Beacon

Xuất sứ: UK

Nhà cung cấp: STC Vietnam

Hãng sản xuất: E2S Warning Signals VietNam

Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải

Liên hệ tư vấn

Mr. Vương

vuong@songthanhcong.com

0372538207

live:.cid.d22573c25f91d309

Csfm Ul Iecex-approval Atex-approval Culs-approval Ce-approval
1-34-030

D2xC1X10 Alarm Horn Sounder & Xenon Strobe Beacon

The D2xC1X10 features a high output, 116dB(A) alarm horn sounder combined with a 10 Joule Xenon strobe beacon.
Low current consumption and high SPL in a compact robust Type 4/4X, IP66 enclosure ensure the D2xC1X10 is suitable for all haz loc fire alarm system and general signalling applications.

The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments.
One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2.
UL & cUL approved 24Vdc version for fire alarm use.

Specification


Horn Sounder:
Maximum output: 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
Nominal output: 112dB(A) @ 1m +/- 3dB - Tone 2 [103dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A) [Tone 2]
Effective range: 125m/410ft @ 1KHz
Stage switching: DC units - Positive or Negative line.
AC units - common supply line
Strobe Beacon:
Energy: 10 Joules (10Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 1,000,000 cd - calculated from energy (J)
Effective Intensity: 500 cd - calculated from energy (J)
Peak Candela: 101,784 cd - measured ref. to I.E.S.
Effective Intensity cd: 288.8 cd - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Tube life: Emissions are reduced to 70% after 8 million flashes
General:
Voltages DC: 24V dc [20-28Vdc]
Voltages AC: 115V ac 50/60Hz; 230V ac 50/60Hz
Ingress protection: EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Housing material: Marine grade aluminium Al Si12 Cu
Colour: Red (RAL3000), grey (RAL7038)
Cable entries: 2 x M20 x 1.5mm threaded gland entries
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Grounding stud: M5
Operating temp: -40 to +70°C [-40° to +158°F] - Class I Div 2
-40 to +50°C [-40° to +122°F] - All other approvals
Relative humidity: 95%
Weight: DC: 2.80kg/6.16Ibs AC:3.10kg/6.82Ibs

Part Codes

Version: Part code:
Product type: D2xC1X10 Haz Loc alarm horn sounder & Xenon strobe beacon
Voltage: DC024
DC048
AC115
AC230		 24V dc - UL/cUL Fire Alarm
48V dc
115V ac
230V ac
Cable Entry Type:[e]






Note:		 A
B
C
D
E
F
G		 2 x M20x1.5mm
2 x 1/2" NPT - adaptors
2 x 3/4" NPT - adaptors
2 x M25x1.5mm - adaptors
1 x 1/2" NPT - adaptor
1 x 3/4" NPT - adaptor
1 x M25x1.5mm - adaptor
M20 stopping plugs supplied for unused entries
Adaptor/Stopping
plug material: [m]		 B
N
S		 Brass
Nickel Plated
Stainless Steel
Variable: [s] 1
2		 A2 (304) Stainless Steel Lens Guard
A4 (316) Stainless Steel Lens Guard
Product version: [v] A1 UL, cUL, IECEx & ATEX
Enclosure colour: [x] R
G		 Red RAL3000
Grey RAL7038
Lens colour: [y] A
B
C
G
M
R
Y		 Amber
Blue
Clear
Green
Magenta
Red
Yellow

Alarm sounder

Version: Voltage: Current:
24V dc 10-30V dc 313mA [at nominal voltage]
115V ac 50/60Hz +/-10% 90mA
230V ac 50/60Hz +/-10% 52mA

Coding

  • NEC / CEC: Class I Div 2 ABCD T1 Ta -40°C to +70°C
    Class I Div 2 ABCD T2 Ta -40°C to +50°C
    Class II Div 2 FG T4A Ta -40°C to +50°C (T5 to +40°C)
    Class III Div 1&2 Ta -40°C to +50°C
  • NEC: Class I Zone 2 AEx nA IIC T1 Gc (Ta -40°C to +50°C)
    Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +40°C)
    Zone 22 AEx tc IIIC 120°C Dc (Ta -40°C to +50°C)
  • CEC: Class I Zone 2 Ex nA IIC T1 Gc X (Ta -40°C to +50°C)
    Class I Zone 2 Ex nA IIC T2 Gc X (Ta -40°C to +40°C)
    Zone 22 Ex tc IIIC 120°C Dc (Ta -40°C to +50°C)
    Class II Div 2 EFG T4A Ta -40°C to +50°C
  • IECEx & ATEX: II 3G Ex nA IIC T1 Gc (Ta -40°C to +50°C) (T2 to +40°C) II 3D Ex tc IIIC 90°C Dc (Ta -40°C to +50°C)

Combined

Version: Voltage: Current:
24V dc 20-28V dc 823mA [at nominal voltage]
115V ac 50/60Hz +/-10% 211mA
230V ac 50/60Hz +/-10% 107mA
Voltage & current details for Xenon & Horn components when powered from common power source

Xenon beacon

Version: Voltage: Current:
24V dc 20-28V dc 823mA [at nominal voltage]
115V ac 50/60Hz +/-10% 211mA
230V ac 50/60Hz +/-10% 107mA

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3 Stage 4
T 1  ↓ 1000 Continuous - PFEER Toxic Gas T 3 T 2 T 44
T 2  ↓ 1200/500 @ 1Hz Sweeping - DIN / PFEER P.T.A.P. T 1 T 3 T 44
T 3  ↓ 1000 @ 0.5Hz (1s on, 1s off) Intermittent - PFEER Gen. Alarm T 1 T 2 T 44
T 4  ↓ 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s - NF C 48-265 T 44 T 24 T 1
T 5  ↓ 544(100mS)/440 (400mS) - NF S 32-001 T 52 T 19 T 1
T 6  ↓ 1500/500 - (0.5s on , 0.5s off) x3 + 1s gap - AS4428 T 7 T 44 T 1
T 7  ↓ 500-1500Hz Sweeping 2 sec on 1 sec off - AS4428 T 6 T 44 T 1
T 8  ↓ 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) - NEN 2575 T 44 T 24 T 35
T 9  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a T 18 T 34 T 1
T 10  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a T 21 T 34 T 1
T 11  ↓ 420(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal T 44 T 1 T 8
T 12  ↓ 1000(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal T 44 T 1 T 8
T 13  ↓ 422/775 - (0.85 on, 0.5 off) x3 + 1s gap - NFPA Temporal T 44 T 1 T 8
T 14  ↓ 1000/2000 @ 1Hz - Singapore T 23 T 3 T 35
T 15  ↓ 300 Continuous T 44 T 24 T 35
T 16  ↓ 440 Continuous T 44 T 24 T 35
T 17  ↓ 470 Continuous T 44 T 24 T 35
T 18  ↓ 500 Continuous - IMO code 2 (Low) T 44 T 24 T 35
T 19  ↓ 554 Continuous T 64 T 24 T 35
T 20  ↓ 660 Continuous T 44 T 24 T 35
T 21  ↓ 800 Continuous - IMO code 2 (High) T 44 T 24 T 35
T 22  ↓ 1200 Continuous T 44 T 24 T 35
T 23  ↓ 2000 Continuous T 15 T 3 T 35
T 24  ↓ 2400 Continuous T 48 T 20 T 35
T 25  ↓ 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent T 1 T 44 T 8
T 26  ↓ 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent T 1 T 44 T 8
T 27  ↓ 470 @ 5Hz (0.10s on, 0.10s off) Intermittent T 1 T 44 T 8
T 28  ↓ 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent T 44 T 24 T 8
T 29  ↓ 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent T 1 T 44 T 8
T 30  ↓ 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent T 44 T 24 T 8
T 31  ↓ 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent T 30 T 24 T 8
T 32  ↓ 745 @ 1Hz (0.50s on, 0.50s off) Intermittent T 44 T 24 T 8
T 33  ↓ 800 (0.25s on, 1.00s off) Intermittent T 53 T 24 T 8
T 34  ↓ 800 @ 2Hz (0.25s on, 0.25s off) - IMO code 3.a (High) T 56 T 24 T 8
T 35  ↓ 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent T 44 T 24 T 8
T 36  ↓ 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent T 21 T 24 T 8
T 37  ↓ 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent T 53 T 24 T 8
T 38  ↓ 363/518 @ 1Hz (0.50s / 0.50s) Alternating T 1 T 8 T 19
T 39  ↓ 450/500 @ 2Hz (0.25s / 0.25s) Alternating T 1 T 8 T 19
T 40  ↓ 554/440 @ 1Hz (0.50s / 0.50s) Alternating T 44 T 24 T 19
T 41  ↓ 554/440 @ 0.65Hz (0.76s / 0.76s) Alternating T 1 T 8 T 19
T 42  ↓ 561/760 @ 0.83Hz (0.60s / 0.60s) Alternating T 1 T 8 T 19
T 43  ↓ 780/600 @ 0.96Hz (0.52s / 0.52s) Alternating T 1 T 8 T 19
T 44  ↓ 800/1000 @ 2Hz (0.25s / 0.25s) Alternating T 5 T 24 T 19
T 45  ↓ 970/800 @ 2Hz (0.25s / 0.25s) Alternating T 1 T 8 T 19
T 46  ↓ 800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating T 53 T 24 T 19
T 47  ↓ 2400/2900 @ 2Hz (0.25s / 0.25s) Alternating T 57 T 24 T 19
T 48  ↓ 500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping T 44 T 24 T 12
T 49  ↓ 560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping T 44 T 24 T 12
T 50  ↓ 560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping T 44 T 24 T 12
T 51  ↓ 600/1250 @ 0.125Hz (4s / 4s) Sweeping T 44 T 24 T 12
T 52  ↓ 660/1200 @ 1Hz (0.50s / 0.50s) Sweeping T 64 T 24 T 12
T 53  ↓ 800/1000 @ 1Hz (0.50s / 0.50s) Sweeping T 56 T 24 T 12
T 54  ↓ 800/1000 @ 7Hz (0.07s / 0.07s) Sweeping T 57 T 24 T 12
T 55  ↓ 800/1000 @ 50Hz (0.01s / 0.01s) Sweeping T 54 T 24 T 12
T 56  ↓ 2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping T 57 T 24 T 12
T 57  ↓ 2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping T 47 T 24 T 12
T 58  ↓ 2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping T 54 T 24 T 12
T 59  ↓ 2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping T 44 T 24 T 12
T 60  ↓ 2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping T 44 T 24 T 12
T 61  ↓ 800Hz Motor Siren T 44 T 24 T 12
T 62  ↓ 1200Hz Motor Siren T 44 T 24 T 12
T 63  ↓ 2400Hz Motor Siren T 44 T 24 T 12
T 64  ↓ Simulated Bell T 44 T 21 T 12
Country specific or custom tone configurations and alarm frequencies are available upon request.

D2xC1X10 Alarm Horn Sounder & Xenon Strobe Beacon

  • 10 Joule Xenon beacon with 116dB(A) alarm horn
  • 64 alarm tones, 4 remotely selectable alarm stages/channels
  • Automatic synchronisation on multi-sounder system
  • Field changeable lens colours

Approvals

  • UL File ref:E230764
    ANSI/ISA 12.12.01 – 2013
    CSA C22.2 No. 213-M1987
    ANSI/UL60079-0-13
    ANSI/UL60079-15-2013
    ISA60079-31-2009
    CAN/CSA C22.2 No. 60079-0-11
    CAN/CSA C22.2 No. 60079-15-12
    CAN/CSA C22.2 No. 60079-31-12
  • IECEx cert: IECEx ULD 14.0004X
    IEC60079-0: ed. 6.0 (2011-06)
    IEC60079-15: ed. 4.0 (2010-01)
    IEC60031-31: ed. 2.0 (2013-11)
  • ATEX cert: DEMKO 14 ATEX 4786493904X
    EN60079-0:2012
    EN60079-15:2010
    EN60079-31:2009
  • CSFM listing: 7136-2279:0503
