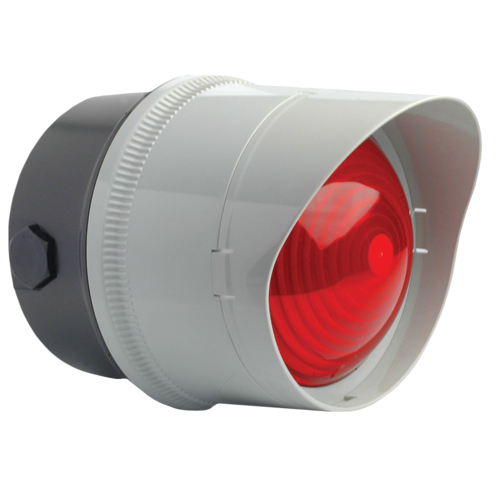

B350TSB Đèn dây tốc 21 cd_ Filament Lamp Traffic Light E2S Vietnam
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải
Mr. Vương
2-11-060
B350TSB Filament Lamp Traffic Light
The B350 series of traffic light beacons are available in single E14 filament bulb or high output L.E.D array versions. The compact housing is ideal for space constrained applications or for mounting directly onto machinery.
Specification
| Light source: | Filament Lamp E14 |
| Light output: | 25W |
| Function: | Permanent |
| L.E.D. colours: | Amber, Blue, Clear, Green, Red & Yellow |
| Effective Intensity cd: | 21 cd* (peak/effective intensity) |
| Lens type: | Prismatic |
| Mounting: | Surface mount (Wall mount bracket available) |
| Entries: | 1 x 5-7mm push through grommet 1 x M20 cable entry |
| Dimensions: | ø100 x 140mm |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Terminals: | 0.5 to 1.5mm² |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 350g/0.77Ibs |
| *Candela measurements representative of performance with clear lens at optimum voltage. | |
Part Codes
| Version: | Part code: | ||
|---|---|---|---|
| 12-250V | B350TSB250B/[x] | ||
| [x] = Lens colour: | A: Amber B: Blue C: Clear G: Green R: Red Y: Yellow |
||
| Note: Filament lamps not included. Must be ordered separately | |||
| Mounting brackets: | |||
| MB-B350T-S | Mounting bracket kit for a single B350 type unit. | ||
| MB-B350T-M | Mounting bracket kit for linked multiple B350 type units. | ||
| Note: Multiple unit connector is supplied with each product. | |||
| Filament lamp part codes: | |||
| Version: | Wattage: | Type: | Part code: |
| 12V dc | 25W | E14 | BB261225E |
| 24V dc | 25W | E14 | BB263025E |
| 48V dc | 25W | E14 | BB264825E |
| 115V ac | 25W | E14 | BB2613025E |
| 230V ac | 25W | E14 | BB2623525E |
| Note: Filament lamps to be ordered separately. | |||
B350TSB Filament Lamp Traffic Light
- Bayonet fixing lens.
- Anti-tamper locking screw.
- Stainless steel fixings.
Approvals
- GOST-R certificate: POCC GB.JB05.H00144.
