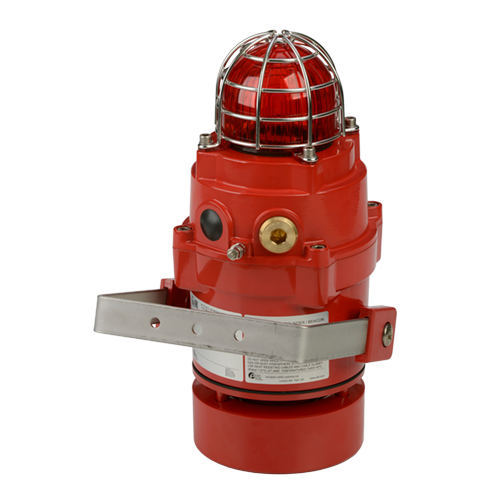

BExCS110-05 Omni-directional Alarm Horn & Xenon Beacon
The flameproof BExCS110-05-R combination alarm horn sounder and Xenon strobe beacon with omni-directional horn is suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
The radial horn on the compact BExCS110-05-R distributes the audible warning signal omni-directionally allowing the visual signal to be orientated optimally. The alarm horn & Xenon beacon may be connected from a single power supply for simultaneous operation or from separate supplies for independent operation.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.
Specification
| Sounder/Horn: | |
| Maximum output: | 115dB(A) @ 1 metre [106dB(A) @ 10ft/3m] |
| Nominal output: | 110dB(A) @ 1m +/- 3dB - Tone 2 [101dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 110dB(A); Min. 72dB(A) - Tone 2 |
| Effective range: | 100m/328ft @ 1KHz |
| Voltages DC: | 12vdc; 24vdc; 48vdc |
| Voltages AC: | 115vac; 230vac |
| Stage switching: | Negative or positive |
| Beacon: | |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Eff. Intensity: | 250 cd - calculated from energy (J) |
| Peak Candela: | 39,463 cd* - measured ref. to I.E.S. |
| Eff. Intensity: | 120 cd* - measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Tube life: | Emissions are reduced to 70% after 5 million flashes |
| General: | |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated |
| Horn material: | High impact UL94 V0 & 5VA FR ABS (Red) |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight: | DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs |
| SPL data +/-3dB(A), Candela with clear lens - at optimum voltage | |
Current Consumption
| Alarm Sounder | Xenon Beacon | |||
|---|---|---|---|---|
| Version: | Voltage: | Current: | Voltage: | Current: |
| 12V dc | +/-25% | 195mA | 10-14V | 750mA |
| 24V dc | +/-25% | 265mA | 20-28V | 300mA |
| 48V dc | +/-25% | 130mA | 42-54V | 180mA |
| 115V ac 50/60Hz | +/-10% | 110mA | +/-10% | 140mA |
| 230V ac 50/60Hz | +/-10% | 56mA | +/-10% | 55mA |
Part Codes
| Version: | Part code: | |
|---|---|---|
| Product type: | BExCS11005 | Explosion proof Alarm Horn Sounder & 5J Xenon Beacon |
| Type: | DPR | Ex d, UV stable PC Colour Lens, Radial Omni-directional Horn |
| Voltage: | DC012 DC024 DC048 AC115 AC230 |
12V dc 24V dc 48V dc 115V ac 240V ac |
| Cable Entry Type:[e] Note: |
A B C D E F G |
2 x M20x1.5mm 2 x 1/2" NPT - adaptors 2 x 3/4" NPT - adaptors 2 x M25x1.5mm - adaptors 1 x 1/2" NPT - adaptor 1 x 3/4" NPT - adaptor 1 x M25x1.5mm - adaptor M20 stopping plugs for unused entries supplied with all options |
| Adaptor/Stopping plug material: [m] |
B N S |
Brass Nickel Plated Stainless Steel |
| Bracket/Guard material: [s] | 1 2 3 4 |
A2 304 Stainless Steel A4 316 Stainless Steel A2 304 St/St with Equip. Tag A4 316 St/St with Equip. Tag (304) |
| Product version: [v] | A1 P1 |
Default - IECEx, ATEX, Ex EAC & INMETRO Stage programmable - IECEx, ATEX, Ex EAC & INMETRO |
| Enclosure colour: [x] | R S |
Red RAL3000 Special - contact E2S |
| Lens colour: [y] | A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
Coding
- II 2G Ex d IIB T5 Gb Ta. -50°C to +40°C
- II 2G Ex d IIB T4 Gb Ta. -50°C to +70°C
- II 2D Ex tb IIIC T110°C Db Ta. -50°C to +55°C
- II 2D Ex tb IIIC T125°C Db Ta. -50°C to +70°C
Effective Candela lens colour factor
| Amber | Blue | Clear | Green | Red | Yellow |
| 0.70 | 0.24 | 1.00 | 0.25 | 0.23 | 0.93 |
Tone Table
| Stage 1 | WAV file | Frequency Description. | Stg 2 | Stg 3 |
|---|---|---|---|---|
| T 1 |  ↓ |
Continuous 1000Hz Toxic Gas Alarm | T 31 | T 11 |
| T 2 | ↓ |
Alternating 800/1000Hz at 0.25s intervals | T 17 | T 5 |
| T 3 | ↓ |
Slow Whoop 500/1200Hz at 0.3Hz with 0.5s gap repeated | T 2 | T 5 |
| T 4 | ↓ |
Sweeping 800/1000 at 1Hz | T 6 | T 5 |
| T 5 | ↓ |
Continuous at 2400Hz | T 3 | T 27 |
| T 6 | ↓ |
Sweeping 2400/2900Hz at 7Hz | T 7 | T 5 |
| T 7 | ↓ |
Sweeping 2400/2900Hz at 1Hz | T 10 | T 5 |
| T 8 | ↓ |
Siren 500/1200/500Hz at 0.3Hz | T 2 | T 5 |
| T 9 | ↓ |
Sawtooth 1200/500Hz at 1Hz | T 15 | T 2 |
| T 10 | ↓ |
Alternating 2400/2900Hz at 2Hz | T 7 | T 5 |
| T 11 | ↓ |
Intermittent 1000Hz at 0.5Hz General alarm | T 31 | T 1 |
| T 12 | ↓ |
Alternating 800/1000Hz at 0.875Hz | T 4 | T 5 |
| T 13 | ↓ |
Intermittent 2400Hz at 1Hz | T 15 | T 5 |
| T 14 | ↓ |
Intermittent 800Hz 0.25s on 1s off | T 4 | T 5 |
| T 15 | ↓ |
Continuous at 800Hz | T 2 | T 5 |
| T 16 | ↓ |
Intermittent 660Hz 150mS on, 150mS off | T 18 | T 5 |
| T 17 | ↓ |
Alternating 544Hz (100mS)/440Hz(400mS) | T 2 | T 27 |
| T 18 | ↓ |
Intermittent 660Hz 1.8s on, 1.8s off | T 2 | T 5 |
| T 19 | ↓ |
1400Hz to 1600Hz sweep up over 1s -1600Hz to 1400Hz sweep down over 0.5s | T 2 | T 5 |
| T 20 | ↓ |
Continuous 660Hz | T 2 | T 5 |
| T 21 | ↓ |
Alternating 554/440Hz at 1Hz | T 2 | T 5 |
| T 22 | ↓ |
Intermittent 554Hz at 0.875Hz | T 2 | T 5 |
| T 23 | ↓ |
800Hz pulsing at 2Hz | T 6 | T 5 |
| T 24 | ↓ |
Sweeping 800/1000Hz at 50Hz | T 29 | T 5 |
| T 25 | ↓ |
Sweeping 2400/2900Hz at 50Hz | T 29 | T 5 |
| T 26 | ↓ |
Simulated bell sound | T 2 | T 1 |
| T 27 | ↓ |
Continuous 554Hz | T 26 | T 5 |
| T 28 | ↓ |
Continuous 440Hz | T 2 | T 5 |
| T 29 | ↓ |
Sweeping 800/1000Hz at 7Hz | T 7 | T 5 |
| T 30 | ↓ |
420Hz repeating 0.625s on, 0.625s off Australian alert signal | T 32 | T 5 |
| T 31 | ↓ |
1200/500Hz at 1 Hz Prepare to Abandon Platform | T 11 | T 1 |
| T 32 | ↓ |
Sweeping 500/1200Hz 3.75s on, 0.25s off 15Hz | T 26 | T 1 |
| Country specific or custom tone configurations and alarm frequencies are available upon request. | ||||
