BExCTS110-05 e2s vietnam Loa đèn báo điện thoại cục bộ Flare Horn Alarm & Strobe - Telephone Initiated
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải
Mr. Vương
1-23-011

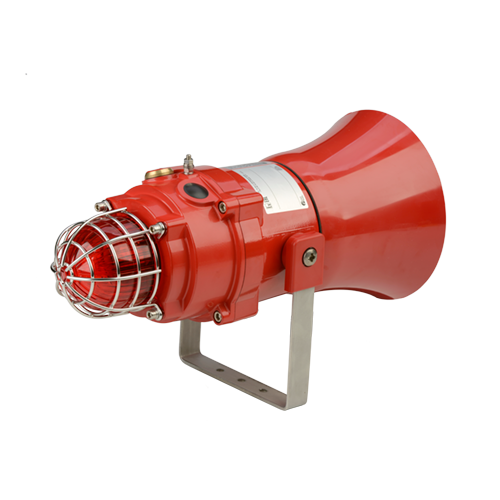

BExCTS110-05 Flare Horn Alarm & Strobe - Telephone Initiated
The BExCTS110-05D is a flameproof telephone initiated combined alarm horn sounder and Xenon strobe beacon. The unit produces a loud audible signal and a visual signal, when triggered by a telephone ringing signal and can be used in hazardous areas where potentially flammable atmospheres may be present. Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
Thirty two different sounds can be selected by internal switches, (see tone table on Page 5). The sounder produces output levels in the 110dB(A) range and the beacon produces an output level of 5 joules. The unit can be used in Zone 1 and Zone 2 areas with gases in groups IIA and IIB and with Temperature Classifications of T1, T2, T3, and T4.
Specification
| Sounder/Horn: | |
| Maximum output: | 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m] |
| Nominal output: | 110dB(A) @ 1m +/- 3dB - Tone 2 [101dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| Volume control: | Max. 110dB(A); Min. 72dB(A) - Tone 2 |
| Effective range: | 100m/328ft @ 1KHz |
| Voltages DC: | 12vdc; 24vdc; 48vdc |
| Voltages AC: | 115vac; 230vac |
| Beacon: | |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Eff. Intensity: | 250 cd - calculated from energy (J) |
| Peak Candela: | 39,463 cd* - measured ref. to I.E.S. |
| Eff. Intensity: | 120 cd* - measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Tube life : | Emissions are reduced to 70% after 5 million flashes |
| General: | |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated |
| Horn material: | High impact UL94 V0 & 5VA FR ABS (Red) |
| Cable entries: | Dual M20 ISO (one stopping plug included) |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Grounding stud: | M5 |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight: | DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs |
| SPL data +/-3dB(A), Candela with clear lens - at optimum voltage | |
Current Consumption
| Alarm Sounder | Xenon Beacon | ||||
|---|---|---|---|---|---|
| Version: | Voltage: | Current: | Voltage: | Current: | |
| 12V dc | +/-25% | 195mA | 10-14V | 750mA | |
| 24V dc | +/-25% | 265mA | 20-28V | 300mA | |
| 48V dc | +/-25% | 130mA | 42-54V | 180mA | |
| 115V ac 50/60Hz | +/-10% | 110mA | +/-10% | 140mA | |
| 230V ac 50/60Hz | +/-10% | 56mA | +/-10% | 55mA | |
Part Codes
| Version: | Part code: | |
|---|---|---|
| Product type: | BExCTS11005 | Explosion proof Telephone Initiated Alarm Horn Sounder & 5J Xenon Beacon |
| Type: | DPF | Ex d, UV stable PC Colour Lens, Flare Horn |
| Voltage: | DC012 DC024 DC048 AC115 AC230 |
12V dc 24V dc 48V dc 115V ac 240V ac |
| Cable Entry Type:[e] Note: |
A B C D E F G |
2 x M20x1.5mm 2 x 1/2" NPT - adaptors 2 x 3/4" NPT - adaptors 2 x M25x1.5mm - adaptors 1 x 1/2" NPT - adaptor 1 x 3/4" NPT - adaptor 1 x M25x1.5mm - adaptor M20 stopping plugs for unused entries supplied with all options |
| Adaptor/Stopping plug material: [m] |
B N S |
Brass Nickel Plated Stainless Steel |
| Bracket/Guard material: [s] | 1 2 3 4 |
A2 304 Stainless Steel A4 316 Stainless Steel A2 304 St/St with Equip. Tag A4 316 St/St with Equip. Tag (304) |
| Product version: [v] | A1 | Default - IECEx, ATEX, Ex EAC & INMETRO |
| Enclosure colour: [x] | R S |
Red RAL3000 Special - contact E2S |
| Lens colour: [y] | A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
Coding
- II 2G Ex d IIB T5 Gb Ta. -50°C to +40°C
- II 2G Ex d IIB T4 Gb Ta. -50°C to +70°C
- II 2D Ex tb IIIC T110°C Db Ta. -50°C to +55°C
- II 2D Ex tb IIIC T125°C Db Ta. -50°C to +70°C
Effective Candela lens colour factor
| Amber | Blue | Clear | Green | Red | Yellow |
| 0.70 | 0.24 | 1.00 | 0.25 | 0.23 | 0.93 |
Tone Table
| Stage 1 | WAV file | Frequency Description. |
|---|---|---|
| T 1 |  ↓ |
Continuous 1000Hz Toxic Gas Alarm |
| T 2 | ↓ |
Alternating 800/1000Hz at 0.25s intervals |
| T 3 | ↓ |
Slow Whoop 500/1200Hz at 0.3Hz with 0.5s gap repeated |
| T 4 | ↓ |
Sweeping 800/1000 at 1Hz |
| T 5 | ↓ |
Continuous at 2400Hz |
| T 6 | ↓ |
Sweeping 2400/2900Hz at 7Hz |
| T 7 | ↓ |
Sweeping 2400/2900Hz at 1Hz |
| T 8 | ↓ |
Siren 500/1200/500Hz at 0.3Hz |
| T 9 | ↓ |
Sawtooth 1200/500Hz at 1Hz |
| T 10 | ↓ |
Alternating 2400/2900Hz at 2Hz |
| T 11 | ↓ |
Intermittent 1000Hz at 0.5Hz General alarm |
| T 12 | ↓ |
Alternating 800/1000Hz at 0.875Hz |
| T 13 | ↓ |
Intermittent 2400Hz at 1Hz |
| T 14 | ↓ |
Intermittent 800Hz 0.25s on 1s off |
| T 15 | ↓ |
Continuous at 800Hz |
| T 16 | ↓ |
Intermittent 660Hz 150mS on, 150mS off |
| T 17 | ↓ |
Alternating 544Hz (100mS)/440Hz(400mS) |
| T 18 | ↓ |
Intermittent 660Hz 1.8s on, 1.8s off |
| T 19 | ↓ |
1400Hz to 1600Hz sweep up over 1s -1600Hz to 1400Hz sweep down over 0.5s |
| T 20 | ↓ |
Continuous 660Hz |
| T 21 | ↓ |
Alternating 554/440Hz at 1Hz |
| T 22 | ↓ |
Intermittent 554Hz at 0.875Hz |
| T 23 | ↓ |
800Hz pulsing at 2Hz |
| T 24 | ↓ |
Sweeping 800/1000Hz at 50Hz |
| T 25 | ↓ |
Sweeping 2400/2900Hz at 50Hz |
| T 26 | ↓ |
Simulated bell sound |
| T 27 | ↓ |
Continuous 554Hz |
| T 28 | ↓ |
Continuous 440Hz |
| T 29 | ↓ |
Sweeping 800/1000Hz at 7Hz |
| T 30 | ↓ |
420Hz repeating 0.625s on, 0.625s off Australian alert signal |
| T 31 | ↓ |
1200/500Hz at 1 Hz Prepare to Abandon Platform |
| T 32 | ↓ |
Sweeping 500/1200Hz 3.75s on, 0.25s off 15Hz |
| Country specific or custom tone configurations and alarm frequencies are available upon request. | ||
