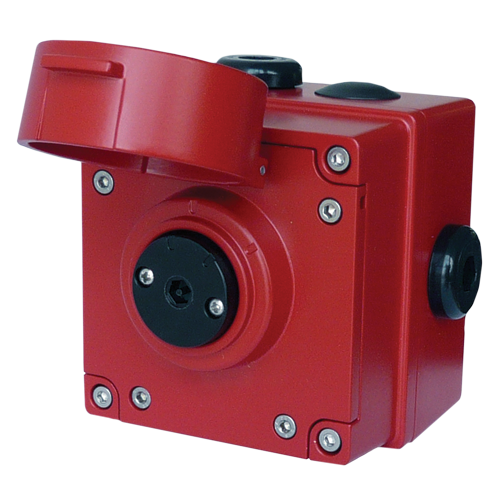

BExCP3A-PT/BExCP3B-PT Tool Reset Call Point
The BExCP3A-PT and BExCP3B-PT push button, tool resettable manual call points are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards.
The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The push button is user resettable via the use of the special key supplied with the unit. The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.
Specification
| BExCP3A-PT: | II 2G Ex d e IIC T6 Gb II 2D Ex t IIIC T60°C Db IP66 |
| BExCP3B-PT: | II 2G Ex d e mb IIC T4 Gb II 2D Ex t IIIC T70°C Db IP66 |
| Ambient: | Ta = -40°C to +55°C [-40° to +131°F] (+50°C for BExCP3B) |
| Ingress protection: | IP66 |
| Housing material: | Marine grade copper free LM6 Aluminium |
| Housing finish: | Phosphated & powder coated finish: anti-corrosion. |
| Colour: | RAL3000 Red (others available on request) |
| Cable entries: | 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries. |
| Stopping plugs: | 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional |
| Terminals: | 6 x 4.0mm² cables. |
Part Codes
| Option: | Code: | Description: |
|---|---|---|
| Type: | BExCP3A-PT BExCP3B-PT |
A type - no end of line devices B type - choice of end of line devices |
| Terminals: | ST DR |
ST: Standard DR: DIN rail (only on BExCP3B type) |
| Duty label: | NL DL |
No duty label Duty label required - specify contents |
| Colour: | RD XX |
Red enclosure colour Other enclosure colour - contact sales |
| Voltage: | 48V 24V 12V 6V |
System voltage (only required for BExCP3B type) |
| E.O.L. Resistor: | ExxxR | Resistor value in Ohms e.g. E470R = 470 Ohm (only required for BExCP3B type) |
| Series Resistor: | SxxxR | Resistor value in Ohms e.g. S1K5R = 1.5K Ohm (only required for BExCP3B type) |
| e.g. BExCP3A-PT-ST-LF-NL-RD | ||
| BExCP3A Push Button call point with standard terminals and no duty label. Red housing | ||
| e.g. BExCP3B-PT-DR-NF-NL-RD-24V-E470R | ||
| BExCP3B Push Button call point with DIN rail terminals,no duty label, 24V supply with a 470 Ohm end of line resistor. Red housing. |
||
Options
- Alternative housing colours are available to meet specific requirements.
- DIN rail mounted terminal blocks: 8 x 2.5mm²
- Metalised Polyester “Duty” label.
- Series and/or End of Line resistors.
Versions
| Version: | Voltage: | Switch: | Terminals: | Cable entries: | |
|---|---|---|---|---|---|
| BExCP3A-PT | 250V ac Max. 50V dc Max. |
5.0A Max. 1.0A Max. |
6 x 4mm² | 2 x M20 Top/Bottom 1 x M20 Left/Right |
|
| Coding: | II 2G Ex d e IIC T6 Gb Ta = -40°C to +55°C II 2D Ex t IIIC T60°C Db IP66 |
||||
| Version: | Nom./Max. Voltage: |
Switch: | Terminals: | Cable entries: | Min. EOL / Series Value: |
| BExCP3B-PT | 48V/56V 24V/28V 12V/15V 6V/9V |
56V dc Max. Rating: <50V: 1.0A >50V: 0.75A |
6 x 4mm² or 8 x 2.5mm² DIN rail |
2 x M20 Top/Bottom 1 x M20 Left/Right |
1K8 470R 120R 47R |
| Coding: | II 2G Ex d e mb IIC T4 Gb Ta = -40°C to +50°C II 2D Ex t IIIC T70°C Db IP66 |
||||
