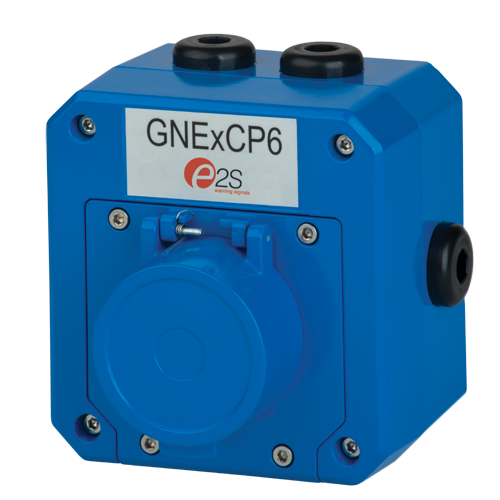

GNExCP6B-PT Tool Reset
Manual Call Point with EOL & series devices.
The GNExCP6B manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems.
All types are available with EOL or series resistors, diode or Zener diodes or an LED indicator and also with either single or double pole change over switches. All versions are certified to ATEX and IECEx standards.
Specification
| GNExCP6B: | II 2G Ex d e mb IIC T4 Gb II 2D Ex t IIIC T80°C Db IP66 |
|
| Ambient: | Ta = -40°C to +50°C/+55°C [-40° to +122°F/+131°F] | |
| Ingress protection: | IP66 | |
| Housing material: | GRP - glass reinforced polyester (UV stable) |
|
| Colour: | RAL3000 Red (others available on request) | |
| Cable entries: | 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries. |
|
| Stopping plugs: | 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional |
|
| Terminals: | 6 x 4.0mm² / 8 x 2.5mm² | |
| Weight: | 1.3Kg/2.86Ibs | |
| Note: | For applications that do not require monitoring resistors, diodes or inidcator LED’s please see the GNExCP6A-PT version. Data sheet reference: 1.3.06. |
|
| The GNExCP6B call point can contain a maximum of two resistor or diode E.O.L. or series modules. The LED indicator can be combined with an EOL resistor or diode. | ||
| Part Code Structure | ||
| Example: | GNExCP6B-PT[s][m][t][d][x][v][Exxx][Sxxx] GNExCP6B-PT-S-N-S-N-RD-24-E470R-S10KR |
|
Part Codes
| Version: | Part code: | |
|---|---|---|
| Product type: | GNExCP6B-PT GNExCP6C-PT |
B type - choice of end of line devices C type - with +55C certified temperature |
| Switch Type: [s] | S D |
SPCO DPCO |
| Stopping plug material: [m] |
N B P S |
Nylon Brass Nickel Plated Stainless Steel |
| Terminals: [t] | S D |
Standard 6 x 4mm² DIN Rail 8 x 2.5mm² |
| Duty label [d]: | N P S |
No duty label Metalised Polyester Stainless Steel |
| Enclosure colour: [x] |
RD, BL, GN, YW RW, YB, BK |
Red, Blue, Green, Yellow Red/White, Yellow/Black, Black |
| Voltage: [v] | 48, 24 12, 06 |
48V, 24V, 12V, 6V System voltage |
| E.O.L.Module: [Exxx] |
ExxxR ED1 ExxxZ |
Resistor value in Ohms e.g. E470R = 470 Ohm Diode IN4007 = ED1 Zener diode e.g. E5V1Z = 5.1V |
| Series Module: [Sxxx] |
SxxxR SD1 SxxxZ LED |
Resistor value in Ohms e.g. S1K5R = 1.5K Ohm Diode IN4007 = SD1 Zener diode e.g. S5V1Z = 5.1V LED = LED indicator |
Options
- Alternative housing colours are available to meet specific requirements.
- Single or double pole c/o switch.
- DIN rail mounted terminal blocks: 8 x 2.5mm².
- Metalised polyester or stainless steel “Duty” label.
- Series and/or End of Line resistors, diodes & Zener diodes
- Indicator LED.
Versions
| Resistors: | Zener Diodes: | Diodes: | |||||
|---|---|---|---|---|---|---|---|
| Max./ Nominal Voltage: |
Min. Resistor Value: |
Max. Current (if resistor is EOL only): |
Zener Voltage: |
Max. Input Volt.: |
Max Current: |
Max. Voltage: |
Max. Current: |
| 56V / 48V 28V / 24V 15V / 12V 9V / 6V |
1K8 470R 120R 47R |
0.75A 1.00A 1.00A 1.00A |
3.3V 4.7V 5.1V 5.6V 6.2V 6.8V 10V 12V |
56V dc 56V dc 56V dc 56V dc 56V dc 56V dc 56V dc 56V dc |
230mA 162mA 149mA 136mA 122mA 112mA 76mA 63mA |
<56V dc <50V dc |
0.75A 1.00A |
| If resistor is used in Series the Max. Current is not applicable. | |||||||
