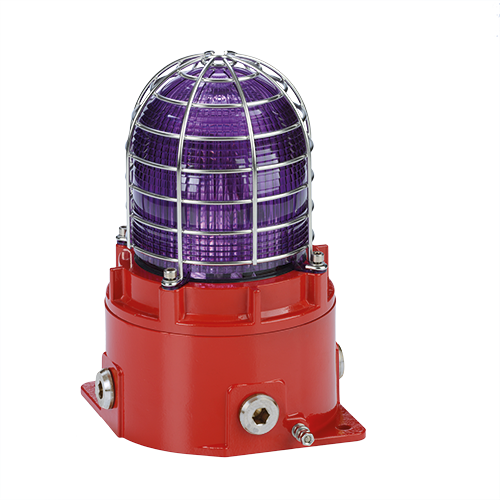

BExBGL2 Explosion Proof L.E.D. Status Light & Beacon
The flameproof BExBGL2 L.E.D. multi-function beacon is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards.
The BExBGL2 explosion proof LED status light & beacon utilises an array of high power Cree® LED's, orientated to optimise visibility in any direction.
The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device.
The UV stable colour filter enhances the light output and is field replaceable.
Specification
| Source: | Array of 4 x High Power Cree® LED's |
| Modes: | 1Hz flash (60 fpm) 1.5Hz flash (90 fpm) 2Hz flash (120 fpm) Double strike flash Triple strike flash High Power Steady Low Power Steady |
| Eff. Intensity cd: | 87 cd - High Power Steady |
| Eff. Intensity cd: | 160 cd - 1Hz flash |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltages DC: | 24V dc (18-54V dc) |
| Voltages AC: | 115V ac; 230V ac |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish - anti-corrosion. |
| Colour: | RAL3000 Red (others available on request) |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| LED life: | 60,000 hours |
| Grounding stud: | M5 |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight: | DC:2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs |
| *All candela data is representative of performance with clear lens at optimum voltage. | |
| Example part code: | BExBGL2DPAC230 [e][m][s][v][x]/[y] BExBGL2DPAC230AB1A1R/R BExBGL2 Ex d LED Beacon, 230V ac, 2 x M20 entries, Brass stopping plugs, A2 304 SS dome guard, IECEx & ATEX approved, Red enclosure, Red lens |
Current Consumption
| Version: | Voltage: | Steady High Power Current: |
Steady Low Power Current: |
Flashing 1Hz Current: |
|---|---|---|---|---|
| 24V dc | 18-54V dc | 240mA | 134mA | 110mA |
| 115V ac | 103.5-126.5V ac 50/60Hz | 95mA | 78mA | 90mA |
| 230V ac | 207-253V ac 50/60Hz | 48mA | 37mA | 45mA |
Part Codes
| Version: | Part code: | |
|---|---|---|
| Product: | BExBGL2 | LED Multi-function Beacon |
| Type: | DP | Ex d, UV stable PC lens coloured filter |
| Voltage: | DC024 AC115 AC230 |
18-54V dc 103.5-126.5V ac 207-253V ac |
| Cable Entry Type:[e] Note: |
A B C D E F G |
2 x M20x1.5mm 2 x 1/2" NPT - adaptors 2 x 3/4" NPT - adaptors 2 x M25x1.5mm - adaptors 1 x 1/2" NPT - adaptor 1 x 3/4" NPT - adaptor 1 x M25x1.5mm - adaptor M20 stopping plug for unused entry supplied |
| Adaptor/Stopping plug material: [m] |
B N S |
Brass Nickel Plated Stainless Steel |
| Bracket/guard matl: [s] | 1 2 3 4 |
A2 304 Stainless Steel A4 316 Stainless Steel A2 304 St/St with Equip. Tag A4 316 St/St with Equip. Tag (304) |
| Product version: [v] | A1 | IECEx & ATEX Group II 2G/D Zone 1, 2, 21 & 22 |
| Enclosure colour: [x] | R | Red RAL3000 |
| Lens colour: [y] | A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
Assemblies
Assemblies: The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.
Coding
- II 2G Ex d IIC T6 Gb Ta. -50°C to +60°C
- II 2G Ex d IIC T5 Gb Ta. -50°C to +70°C
- II 2D Ex tb IIIC T60°C Db Ta. -50°C to +40°C
- II 2D Ex tb IIIC T75°C Db Ta. -50°C to +55°C
- II 2D Ex tb IIIC T90°C Db Ta. -50°C to +70°C
Multi-function patterns
| Stage 1: [On board] |
Stage 2: [Remote] |
Stage 3: [Remote] |
|
|---|---|---|---|
| Steady High Power | Flashing 1Hz | Triple Strike | |
| Steady Low Power | Flashing 1Hz | Triple Strike | |
| Flashing 1Hz | 2x Flash 2Hz | Triple Strike | |
| Flashing 1.5Hz | Flashing 2Hz | Double Strike | |
| Flashing 2Hz | Triple Strike | Triple Strike | |
| Double Strike | Steady High Power | Triple Strike | |
| Triple Strike | Flashing 2Hz | Double Strike | |
| Note: Remote second and third stage on DC units only | |||
