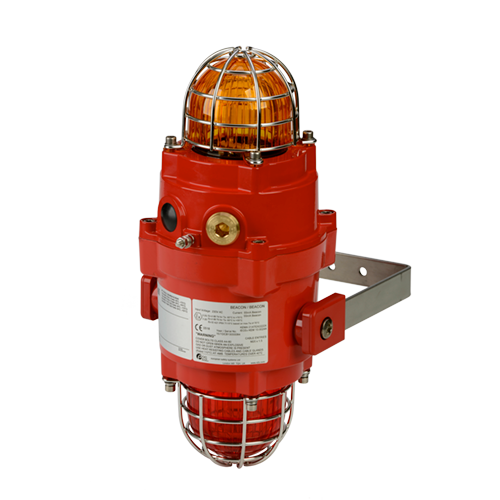

BExCBG05-05 Explosion Proof Dual Xenon Beacon 5 Joule
The flameproof BExCBG05-05 dual Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX and Ex EAC standards.
The BExCBG05-05D dual 5 Joule beacons robust construction enables installation in the harshest of environments. The beacons may be connected from a single supply for simultaneous operation or from separate supplies for independent operation. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.
Specification
| Energy: | 5 Joules x 2 (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd x2 - calculated from energy (J) |
| Eff. Intensity cd: | 250 cd x2 - calculated from energy (J) |
| Peak Candela: | 39,463 cd* x2 - measured ref. to I.E.S. |
| Eff. Intensity cd: | 120 cd* x2 - measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Voltages DC: | 12vdc; 24vdc; 48vdc |
| Voltages AC: | 115vac; 230vac |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish - anti-corrosion. |
| Colour: | RAL3000 Red (others available on request) |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Grounding stud: | M5 |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Tube life: | Emissions are reduced to 70% after 8 million flashes |
| Weight: | DC: 4.00kg/8.8Ibs AC: 4.35kg/9.57Ibs |
| *All candela data is representative of performance with clear lens at optimum voltage. | |
Current Consumption
| Version: | Voltage: | Current (per beacon): | |
|---|---|---|---|
| 12V dc | 10-14V dc | 750mA | |
| 24V dc | 20-28V dc | 300mA | |
| 48V dc | 42-54V dc | 180mA | |
| 115V ac | 50Hz/60Hz | +/-10% | 140mA |
| 230V ac | 50Hz/60Hz | +/-10% | 55mA |
Part Codes
| Version: | Part code: | |||
|---|---|---|---|---|
| Product type: | BExCBG0505 | Explosion proof Dual 5J Xenon Beacon | ||
| Type: | DP | Ex d, UV stable PC Colour Lenses | ||
| Voltage: | DC024 AC115 AC230 |
24V dc 115V ac 240V ac |
||
| Cable Entry Type:[e] Note: |
A B C D E F G |
2 x M20x1.5mm 2 x 1/2" NPT - adaptors 2 x 3/4" NPT - adaptors 2 x M25x1.5mm - adaptors 1 x 1/2" NPT - adaptor 1 x 3/4" NPT - adaptor 1 x M25x1.5mm - adaptor M20 stopping plugs for unused entries supplied |
||
| Adaptor/Stopping plug material: [m] |
B N S |
Brass Nickel Plated Stainless Steel |
||
| Bracket/guard matl: [s] | 1 2 3 4 |
A2 304 Stainless Steel A4 316 Stainless Steel A2 304 St/St with Equip. Tag A4 316 St/St with Equip. Tag (304) |
||
| Product version: [v] | A1 | Default - IECEx, ATEX | ||
| Enclosure colour: [x] | R S |
Red RAL3000 Special - contact E2S |
||
| 1st Xenon lens colour: [y] 2nd Xenon lens colour: [y] |
A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
A B C G M R Y |
Amber Blue Clear Green Magenta Red Yellow |
Assemblies
Assemblies: The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.
Coding
- II 2G Ex d IIB T4 Gb Ta. -50°C to +70°C
- II 2D Ex tb IIIC T115°C Db Ta. -50°C to +55°C
- II 2D Ex tb IIIC T130°C Db Ta. -50°C to +70°C
Effective Candela lens colour factor
| Amber | Blue | Clear | Green | Red | Yellow |
| 0.70 | 0.24 | 1.00 | 0.25 | 0.23 | 0.93 |
