B450TSB Đèn sợi tóc 32cd _ Filament Lamp Traffic Light E2S Vietnam
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải
Mr. Vương
2-11-030

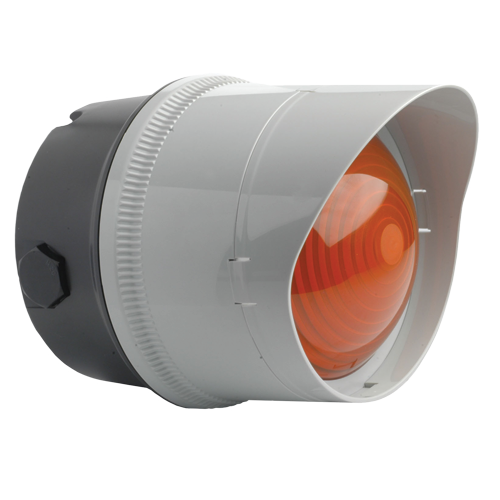

B450TSB Filament Lamp Traffic Light
The B450 series of traffic light beacons are available in single E27 filament lamp, dual E14 filament lamp or high output L.E.D array versions.
Specification
| Light source: | Filament Lamp E27 |
| Light output: | 25W |
| Function: | Permanent |
| L.E.D. colours: | Amber, Blue, Clear, Green, Red & Yellow |
| Effective Intensity cd: | 32 cd* (peak/effective intensity) |
| Lens type: | Prismatic |
| Mounting: | Surface mount (Wall mount bracket available) |
| Entries: | 1 x 5-7mm push through grommet 2 x M20 cable entry |
| Dimensions: | ø140 x 177mm |
| ngress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Terminals: | 0.5 to 2.5mm² |
| Operating temp: | -25 to +50°C [-13° to +122°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| *Candela measurements representative of performance with clear lens at optimum voltage. | |
Part Codes
| Version: | Part code: | ||
|---|---|---|---|
| 12-250V | B450TSB250B/[x] | ||
| [x] = Lens colour: | A: Amber B: Blue C: Clear G: Green R: Red Y: Yellow |
||
| Note: Filament lamps not included. Must be ordered separately |
|||
| Mounting brackets: | |||
| MB-B450T-S | Mounting bracket kit for a single B450 type unit. |
||
| MB-B450T-M | Mounting bracket kit for linked multiple B450 type units. |
||
| Note: Multiple unit connector is supplied with each product. | |||
| Filament lamp part codes: | |||
| Version: | Wattage: | Type: | Part code: |
| 24V dc | 25W | E27 | BGS2525C27 |
| 115V ac | 25W | E27 | BGS11025C27 |
| 230V ac | 25W | E27 | BGS24025C27 |
| Note: Filament lamps to be ordered separately. | |||
