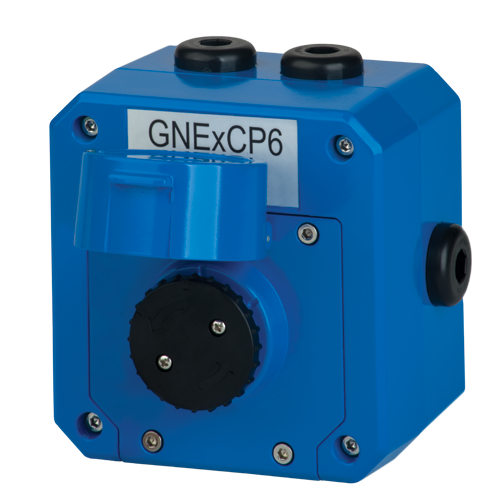

GNExCP6A-PB Push Button



Manual Call Point.

The GNExCP6A manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems.

Available with either single or double pole change over switches. All versions are certified to ATEX and IECEx standards.

Specification


GNExCP6A: II 2G Ex d e IIC T6 Gb
II 2D Ex t IIIC T60°C Db
IP66
Ambient: Ta = -40°C to +55°C [-40° to +131°F]
ngress protection: IP66
Housing material: GRP - glass reinforced polyester (UV stable)
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries.
Stopping plugs: 2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional
Terminals: 6 x 4.0mm² cables.
Weight: 1.3Kg/2.86Ibs
Note: For applications requiring monitoring
resistors, diodes or inidcator LED’s please see
the GNExCP6B-PB version.
Data sheet reference: 1.3.08.

Part Codes

Version: Part code:
Product type: GNExCP6A-PB A type - no end of line devices
Switch Type: [s] S
D
SPCO
DPCO
Stopping
plug material: [m]
N
B
P
S
Nylon
Brass
Nickel Plated
Stainless Steel
Duty label [d]: N
P
S
No duty label
Metalised Polyester
Stainless Steel
Enclosure colour: [x] RD
BL
GN
YW
RW
YB
BK
Red
Blue
Green
Yellow
Red/White
Yellow/Black
Black
Example: GNExCP6A-PB[s][m][d][x]
GNExCP6A-PB-S-N-N-RD
  GNExCP6A call point - Push Button type
- Single Pole switch - Nylon stopping plugs
- No duty label required - Red colour housing

Options

  • Alternative housing colours are available to meet specific requirements.
  • Single or double pole c/o switch.
  • Metalised polyester or stainless steel “Duty” label.

Versions

Version: Voltage: Switch rating: Terminals: Cable entries:
GNExCP6A 250V ac Max.
50V dc Max.
5.0A Max.
1.0A Max.
6 x 4mm² 2 x M20
Top/Bottom
1 x M20
Left/Right
Coding: II 2G Ex d e IIC T6 Gb Ta = -40°C to +55°C
II 2D Ex t IIIC T60°C Db IP66
