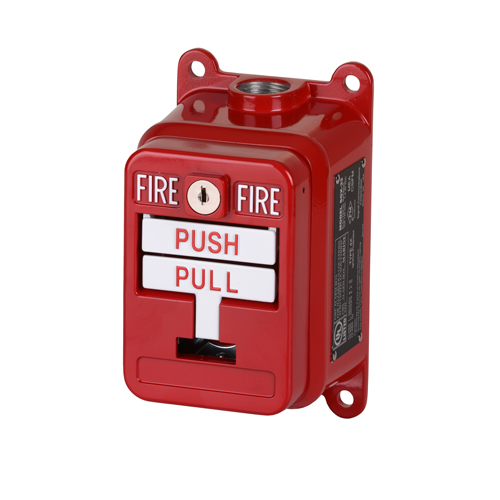

D1xCP1-PS Explosion Proof Manual Pull Station

The D1xCP1-PS is a cast aluminum manual alarm pull station available in a dual action configuration. These explosion proof stations have a DPDT switch mounted in heavy duty cast aluminum housings, complete with screw terminals that accept #22 to 12AWG field wiring.

The solid design and rugged construction of the D1xCP1-PS station makes it ideal for use in harsh operating environments and hazardous locations. The D1xCP1-PS manual station is UL and FM listed for use in the various classifications of hazardous environments shown in the specification table. The device has a NEMA type 4X rating for operation in extreme weather conditions and plant wash down applications. It is also UL Marine listed for operation in highly corrosive environments.

Specification


Listings: UL, FM, CSFM, MEA
Temperature: -40° to 150°F, 90% relative humidity @ 100°F
Switch Type: Double Pole, Double Throw (DPDT)
Switch Rating: 1 Amp @ 30 VDC
10 Amp @ 120 VAC
IP Rating: NEMA Type 4X (UL, FM)
Other: UL Marine Listed
Pull Station Weight: 4.8 lbs
Pull Station Dimensions: 6 5/16”h x 3 1/4”w x 3 7/8”d
Conduit Fittings: Two - 3/4” - 14 NPT
Colour: Red with raised white letters
white “PULL” bar and white “PUSH” bar
(Dual Action) with raised red letters

Part Codes

Version: Part code:
Product type: D1XCP1PS D1xCP1-PS Manual Pull Station
Switch Type: [s] D DPDT/DPCO
Cable entries: [e] D 2 x 3/4" NPT
Stopping plug: [m] X None
Duty label/Tag [s]: 0 No duty label or tag
Version: [v] A1 UL, FM
Enclosure colour: [x] R Red
Full code: D1XCP1PSDDX0A1R
