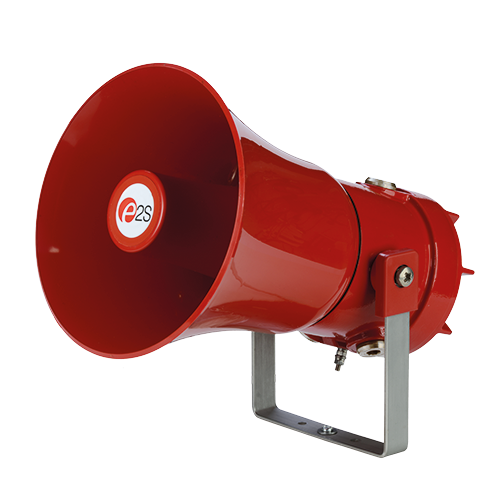

STExS2F Alarm Horn Sounder

The STExS2F is a high output, 123dB(A) alarm horn sounder with a re-entrant flare horn. The robust IP66 corrosion proof 316L stainless steel enclosure ensures the STExS2F is suitable for all Zone 1, 2, 21 & 22 explosion proof signalling applications.

Featuring 64 first stage/channel alarm sounds which can be selected via an internal switch. The alarm tone frequencies for the first 2 stages are independently selectable. Each tone can be remotely triggered e.g. via an external relay, to change to a second, third or fourth stage/channel alarm sound. The enclosure features a threaded flame path, triple cable entries and a large termination area - all of which significantly reduce installation time.

Specification


Maximum output: 123dB(A) @ 1 metre [114dB(A) @ 10ft/3m]
Nominal output: 117dB(A) @ 1m +/- 3dB - Tone 2 [103dB(A) @ 10ft/3m]
No. of tones: 64 (UKOOA / PFEER compliant)
No. of stages: 4
Volume control: Adjustable -12dB(A) [Tone 2]
Effective range: 200m/656ft @ 1KHz
Voltages DC: 24V dc (10-30V dc)
Voltages AC: 110-240V ac 50/60Hz
Stage switching: DC units: negative or positive
AC units: common supply line
Ingress protection: EN60529: IP66
Enclosure matl: 316L Stainless Steel
Enclosure finish: Chromated & powder coated
Colour: Red (RAL3000)
Cable entries: 3 x M20 x 1.5mm
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Grounding stud: M5
Operating temp: -50 to +70°C [-58° to +158°F]
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 6.55kg/14.44lbs

Part Codes

Version: Part code:
Product type: STExS2
Horn type: F Flare re-entrant horn
Voltage: DC024
AC230		 10-30V dc
110-240V ac
Cable Entry Type:[e]






Note:		 A
B
C
D
E
F
G		 3 x M20x1.5mm
2 x 1/2" NPT - adaptors
2 x 3/4" NPT - adaptors
2 x M25x1.5mm - adaptors
1 x 1/2" NPT - adaptor
1 x 3/4" NPT - adaptor
1 x M25x1.5mm - adaptor
M20 stopping plugs for unused
entries supplied with all options
Adaptor/Stopping
plug material: [m]		 B
N
S		 Brass
Nickel Plated
Stainless Steel (standard)
Bracket material: [s] 1
2
3
4		 A2 304 Stainless Steel
A4 316 Stainless Steel (default)
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 IECEx & ATEX Group II 2G/D Zone 1, 2, 21 & 22
Enclosure colour: [x] R Red RAL3000

Alarm sounder

Version: Voltage: Current:
10-30V dc 24V dc 924mA
110-240V ac 50/60Hz 115V ac 268mA
110-240V ac 50/60Hz 230V ac 159mA

Coding

  • Ex db IIC Gb T6 Ta -50°C to +45°C
  • Ex db IIC Gb T5 Ta -50°C to +60°C
  • Ex db IIC Gb T4 Ta -50°C to +70°C
  • Ex tb IIIC Db T105°C Ta -50°C to +70°C

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3 Stage 4
T 1  ↓ 1000 Continuous - PFEER Toxic Gas T 3 T 2 T 44
T 2  ↓ 1200/500 @ 1Hz Sweeping - DIN / PFEER P.T.A.P. T 1 T 3 T 44
T 3  ↓ 1000 @ 0.5Hz (1s on, 1s off) Intermittent - PFEER Gen. Alarm T 1 T 2 T 44
T 4  ↓ 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s - NF C 48-265 T 44 T 24 T 1
T 5  ↓ 544(100mS)/440 (400mS) - NF S 32-001 T 52 T 19 T 1
T 6  ↓ 1500/500 - (0.5s on , 0.5s off) x3 + 1s gap - AS4428 T 7 T 44 T 1
T 7  ↓ 500-1500Hz Sweeping 2 sec on 1 sec off - AS4428 T 6 T 44 T 1
T 8  ↓ 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) - NEN 2575 T 44 T 24 T 35
T 9  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a T 18 T 34 T 1
T 10  ↓ 1000 (1s on, 1s off)x7 + (7s on, 1s off) - IMO Code 1a T 21 T 34 T 1
T 11  ↓ 420(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal T 44 T 1 T 8
T 12  ↓ 1000(0.5s on, 0.5s off)x3 + 1s gap - ISO 8201 Temporal T 44 T 1 T 8
T 13  ↓ 422/775 - (0.85 on, 0.5 off) x3 + 1s gap - NFPA Temporal T 44 T 1 T 8
T 14  ↓ 1000/2000 @ 1Hz - Singapore T 23 T 3 T 35
T 15  ↓ 300 Continuous T 44 T 24 T 35
T 16  ↓ 440 Continuous T 44 T 24 T 35
T 17  ↓ 470 Continuous T 44 T 24 T 35
T 18  ↓ 500 Continuous - IMO code 2 (Low) T 44 T 24 T 35
T 19  ↓ 554 Continuous T 64 T 24 T 35
T 20  ↓ 660 Continuous T 44 T 24 T 35
T 21  ↓ 800 Continuous - IMO code 2 (High) T 44 T 24 T 35
T 22  ↓ 1200 Continuous T 44 T 24 T 35
T 23  ↓ 2000 Continuous T 15 T 3 T 35
T 24  ↓ 2400 Continuous T 48 T 20 T 35
T 25  ↓ 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent T 1 T 44 T 8
T 26  ↓ 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent T 1 T 44 T 8
T 27  ↓ 470 @ 5Hz (0.10s on, 0.10s off) Intermittent T 1 T 44 T 8
T 28  ↓ 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent T 44 T 24 T 8
T 29  ↓ 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent T 1 T 44 T 8
T 30  ↓ 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent T 44 T 24 T 8
T 31  ↓ 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent T 30 T 24 T 8
T 32  ↓ 745 @ 1Hz (0.50s on, 0.50s off) Intermittent T 44 T 24 T 8
T 33  ↓ 800 (0.25s on, 1.00s off) Intermittent T 53 T 24 T 8
T 34  ↓ 800 @ 2Hz (0.25s on, 0.25s off) - IMO code 3.a (High) T 56 T 24 T 8
T 35  ↓ 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent T 44 T 24 T 8
T 36  ↓ 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent T 21 T 24 T 8
T 37  ↓ 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent T 53 T 24 T 8
T 38  ↓ 363/518 @ 1Hz (0.50s / 0.50s) Alternating T 1 T 8 T 19
T 39  ↓ 450/500 @ 2Hz (0.25s / 0.25s) Alternating T 1 T 8 T 19
T 40  ↓ 554/440 @ 1Hz (0.50s / 0.50s) Alternating T 44 T 24 T 19
T 41  ↓ 554/440 @ 0.65Hz (0.76s / 0.76s) Alternating T 1 T 8 T 19
T 42  ↓ 561/760 @ 0.83Hz (0.60s / 0.60s) Alternating T 1 T 8 T 19
T 43  ↓ 780/600 @ 0.96Hz (0.52s / 0.52s) Alternating T 1 T 8 T 19
T 44  ↓ 800/1000 @ 2Hz (0.25s / 0.25s) Alternating T 5 T 24 T 19
T 45  ↓ 970/800 @ 2Hz (0.25s / 0.25s) Alternating T 1 T 8 T 19
T 46  ↓ 800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating T 53 T 24 T 19
T 47  ↓ 2400/2900 @ 2Hz (0.25s / 0.25s) Alternating T 57 T 24 T 19
T 48  ↓ 500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping T 44 T 24 T 12
T 49  ↓ 560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping T 44 T 24 T 12
T 50  ↓ 560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping T 44 T 24 T 12
T 51  ↓ 600/1250 @ 0.125Hz (4s / 4s) Sweeping T 44 T 24 T 12
T 52  ↓ 660/1200 @ 1Hz (0.50s / 0.50s) Sweeping T 64 T 24 T 12
T 53  ↓ 800/1000 @ 1Hz (0.50s / 0.50s) Sweeping T 56 T 24 T 12
T 54  ↓ 800/1000 @ 7Hz (0.07s / 0.07s) Sweeping T 57 T 24 T 12
T 55  ↓ 800/1000 @ 50Hz (0.01s / 0.01s) Sweeping T 54 T 24 T 12
T 56  ↓ 2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping T 57 T 24 T 12
T 57  ↓ 2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping T 47 T 24 T 12
T 58  ↓ 2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping T 54 T 24 T 12
T 59  ↓ 2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping T 44 T 24 T 12
T 60  ↓ 2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping T 44 T 24 T 12
T 61  ↓ 800Hz Motor Siren T 44 T 24 T 12
T 62  ↓ 1200Hz Motor Siren T 44 T 24 T 12
T 63  ↓ 2400Hz Motor Siren T 44 T 24 T 12
T 64  ↓ Simulated Bell T 44 T 21 T 12
Country specific or custom tone configurations and alarm frequencies are available upon request.
