IS-CP4A-PT ( IS-CP4B-PT ) e2s vietnam Nút nhấn có tool reset IS-CP4A-PT ( IS-CP4B-PT ) Tool Reset Call Point
Xuất sứ: UK
Nhà cung cấp: STC Vietnam
Hãng sản xuất: E2S Warning Signals VietNam
Ứng dụng sản phẩm: Dầu khí_Công Nghiệp_Hóa Dầu_Hàng Hải
Mr. Vương
1-14-030

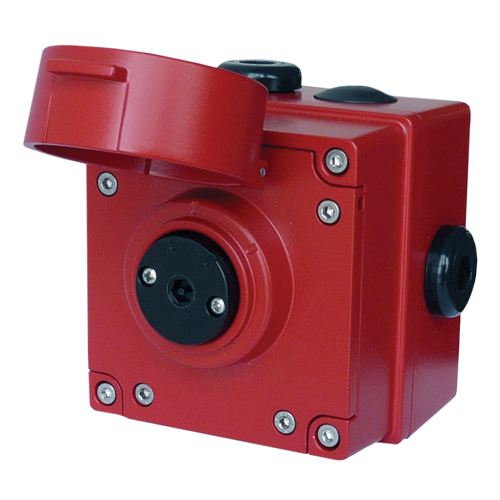

IS-CP4A-PT/IS-CP4B-PT Tool Reset Call Point
The IS-CP4A-PT and IS-CP4B-PT push button, tool resettable, manual call points are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards.
The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The push button is user resettable via the use of the special key supplied with the unit. The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.
Specification
| IS-CP4A-PT: | II 1G Ex ia IIC T6 Ga II 2D Ex tb IIIC T60°C Db IP66 |
| IS-CP4B-PT: | II 1G Ex ia IIC T4 Ga IP66 |
| Ambient: | Ta = -40°C to +55°C [-40° to +131°F] |
| Ingress protection: | IP66 |
| Housing material: | Marine grade copper free LM6 Aluminium |
| Housing finish: | Phosphated & powder coated finish: anti-corrosion. |
| Colour: | RAL3000 Red (others available on request) |
| Cable entries: | 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries. |
| Stopping plugs: | 2 x nylon plugs as standard Brass and stainless steel plugs optional |
| Terminals: | 6 x 4.0mm² cables |
| Weight: | 0.8Kg |
Part Codes
| Option: | Code: | Description: |
|---|---|---|
| Type: | IS-CP4A-PT IS-CP4B-PT |
A type - no end of line devices B type - choice of end of line devices |
| Terminals: | ST | ST: Standard 6 x 4mm² |
| Duty label: | NL DL |
No duty label Duty label required - specify contents |
| Colour: | RD XX |
Red enclosure colour Other enclosure colour - contact sales |
| E.O.L. Resistor: | ExxxR | Resistor value in Ohms e.g. E470R = 470 Ohm (only required for IS-CP4B type) |
| Series Resistor: | SxxxR | Resistor value in Ohms e.g. E1K5R = 1.5K Ohm (only required for IS-CP4B type) |
| e.g. IS-CP4A-PT-ST-LF-NL-RD | ||
| IS-CP4A Push button call point with 6 x 4mm² terminals and no duty label. Red housing | ||
| e.g. IS-CP4B-PT-ST-NF-NL-RD-E470R | ||
| IS-CP4B Push button call point with 6 x 4mm² terminals, no duty label, with a 470 Ohm end of line resistor. Red housing. |
||
Options
- Alternative housing colours are available to meet specific requirements.
- Metalised Polyester “Duty” label.
- Series and/or End of Line resistors.
Plated assembly components
Versions
| Version: | Input: | Voltage: | Terminals: | Cable entries: |
|---|---|---|---|---|
| IS-CP4A-PT | Ui = 30V Ii = 500mA Pi = 1.1W Ci = 0 Li = 0 |
250V ac Max. 5.0A Max. 50V dc Max. 1.0A Max. |
6 x 4mm² | 2 x M20 Top/Bottom 1 x M20 Left/Right |
| Coding: | II 1G Ex ia IIC T6 Ga Ta = -40°C to +55°C II 2D Ex tb IIIC T60°v C Db IP66 |
|||
| Version: | Input: | Terminals: | Cable entries: | |
| IS-CP4B-PT | Ui = 30V Ii = 500mA Pi = 1.1W Ci = 0 Li = 0 |
6 x 4mm² | 2 x M20 Top/Bottom 1 x M20 Left/Right |
|
| Coding: | II 1G Ex ia IIC T4 Ga Ta = -40°C to +55° | |||
