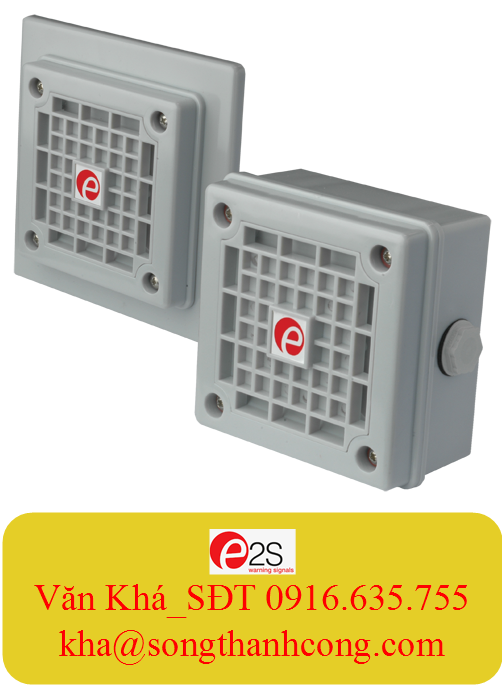

The GPH series are low profile, high output, 105dB(A) alarm horns designed as a maintenance free, reliable alternative to solenoid type buzzers.



Features

  • Automatic synchronisation on multi-sounder system.
  • Continuously rated.
  • Stainless steel fixings.
  • Duplicate cable terminations (in & out for daisy-chain installations).

Part Codes

Version Part code:
GPH1S surface mount:
24V dc/ac GPH1SEDC24G
115V ac GPH1SEAC115G
230V ac GPH1SEAC230G
GPH2F flush mount:
24V dc/ac GPH2FEDC24G
115V ac GPH2FEAC115G
230V ac GPH2FEAC230G



Specification

Nominal output: 105dB(A) @ 1m +/- 3dB [96dB(A) @ 10ft/3m]
No. of tones: 3
Volume control: On board potentiometer
Voltages DC: 24V dc (10-30V dc)
Reverse polarity diode protection on DC units.
Voltages AC: 115V ac; 230V ac
Ingress protection: GPH1: IP66 (UL Type 4/4X/13)
GPH2: IP54 (UL Type 13/3R)
Housing material: High impact UL94 V0 (f1) PC
Colour: Grey (RAL7038)
Cable entries: 2 x M20 clearance
Terminals: 22 – 12AWG (0.5-3mm²)
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.35kg/0.77Ibs
*SPL data +/-3dB(A). Measured at optimum voltage
Tones:
Tone 1 800/1000Hz @ 7Hz
Tone 2 Electro-mechanical type Buzzer tone
Tone 3 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P.
