BEDHEAD Alarm Sounder

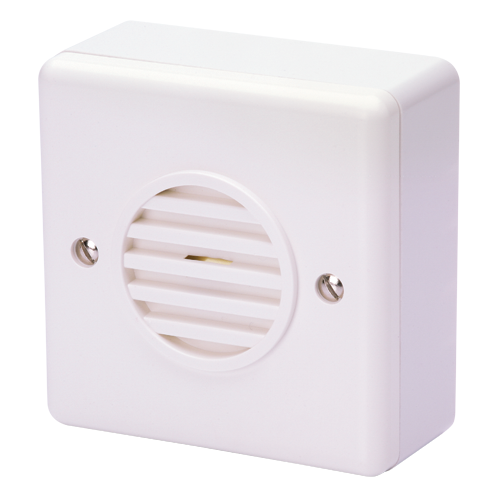

The BEDHEAD flush mount alarm sounder is a low current consumption device suitable for close proximity signalling in fire and security applications.



Specification


Maximum output: 90dB(A) @ 1 metre [81dB(A) @ 10ft/3m]
Nominal output: 85dB(A) @ 1m +/- 3dB - Tone 1 [76dB(A) @ 10ft/3m]
No. of tones: 10
No. of stages: 3
Stage switching: Via negative supply
Volume control: On board potentiometer
Effective range: 10m/33ft @ 1KHz
Voltages DC: 24V dc (10-30V dc)
Current consumption: 8mA @ 24V dc
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000) & white.
Back box: Compatible with standard back box
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight : 0.06kg/0.13Ibs

Part Codes

Version: Part code:
24V dc BEDHEAD[x]
[x] = Housing colour: R: Red W: White

To order compatible back boxes quote part ref: PLMBBHCTW

Alarm sounder

Version: Voltage: Current:
24V dc 10-30V dc 20-80mA

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1   800/1000Hz @ 0.25 sec Alternating T 8 T 5
T 2   500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1 T 8
T 3   1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 1 T 8
T 4   544Hz (100mS)/440Hz (400mS) - NF S 32-001 554Hz T 2
T 5   1000Hz Continuous - PFEER Toxic Gas T 1 T 6
T 6   Bell T 1 T 8
T 7   800/1000Hz @ 7Hz Sweeping T 5 T 1
T 8   2400/2900Hz @ 50Hz Sweeping T 5 T 1
T 9   420Hz @ 0.625 sec Australian Alert T 10 T 5
T 10   500-1200Hz 3.75sec /0.25sec. Australian Evac. T 6 T 5
Country specific or custom tone configurations and alarm frequencies are available upon request.
