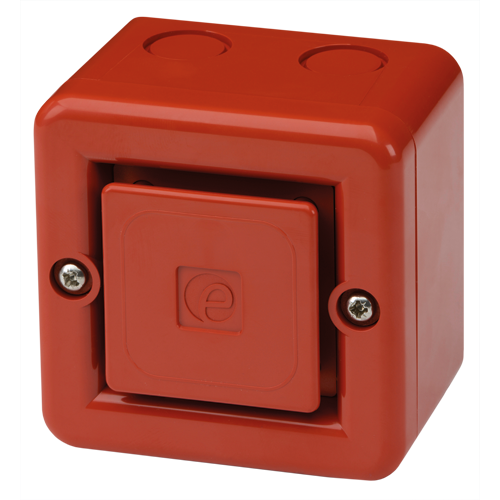

SONF1-HO High Output Alarm Sounder

The SONF1-HO is a compact, high output, 105dB(A) alarm sounder. Low current consumption and high SPL in a robust fire retardant housing ensure the SONF1-HO is suitable for all general signalling applications including fire, security and process control.



Specification


Maximum output: 105dB(A) @ 1 metre [96dB(A) @ 10ft/3m]
Nominal output: 103dB(A) @ 1m +/- 3dB - Tone 1 [94dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
No. of stages: 2
Effective range: 32m/105ft @ 1KHz
Voltages DC: 12V dc; 24V dc
[Reverse polarity diode protection]
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage tempe: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.30kg/0.66Ibs

Part Codes

Version: Part code:
12V dc SONF1DC12[x]-H
24V dc SONF1DC24[x]-H

A100 back box with mounting lugs:
12V dc SONF1DC12A[x]-H
24V dc SONF1DC24A[x]-H
[x] = Housing colour: G: Grey R: Red W: White

Alarm sounder

Version: Voltage: Current:
12V dc 10-18V dc 50mA
24V dc 18-30V dc 80mA

Tone Table

Stage 1 WAV file Frequency Description Stg 2
T 1   800/1000Hz @ 0.25 sec Alternating T 8
T 2   500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 1
T 3   1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 8
T 4   544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 9
T 5   Bell T 1
T 6   800/1000Hz @ 7Hz Sweeping T 8
T 7   500-1200Hz 3.75sec /0.25sec. Australian Evac. T 10
T 8   1000Hz Continuous - PFEER Toxic Gas
T 9   Continuous 554Hz
T 10   420Hz @ 0.625 sec Australian Alert

Where applicable following tones are available on AC voltage versions:
Stage 1   Frequency Description
T 1   800/1000Hz @ 0.25 sec Alternating
T 2   500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop
T 3   1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P.
T 4   544Hz (100mS)/440Hz (400mS) - NF S 32-001
T 5   1000Hz Continuous - PFEER Toxic Gas
T 6   Bell
T 7   800/1000Hz @ 7Hz Sweeping
T 8   2400/2900Hz @ 50Hz Sweeping
T 9   420Hz @ 0.625 sec Australian Alert
T 10   500-1200Hz 3.75sec /0.25sec. Australian Evac.
Country specific or custom tone configurations and alarm frequencies are available upon request.
