1-34-016

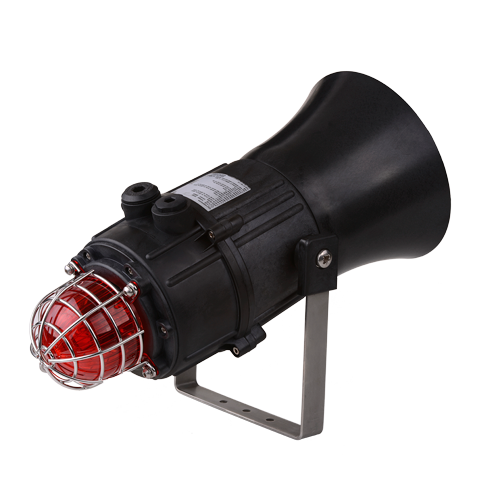

E2xC1LD2F Combination Alarm Horn & LED Beacon

The hazardous location E2xC1LD2F combined alarm sounder and LED beacon/status light is UL/cULs approved for Class I Div 2 and Class II Div 2 as well as IECEx and ATEX certified for Zone 2 and 22 applications.

The E2xC1LD2F features sound level ouputs of up to 116dB(A) at 1 metre with a choice of 45 alarm tones and 3 remotely selectable stages. The LED beacon contains an array of 4 high output, multi-function L.E.D.s. with a total of 7 modes of operation - 5 flashing modes and 2 steady modes for use in indicator / status applications.
The E2x range features enclosures manufactured from lightweight, corrosion proof PPS and high impact, fire retardant ABS re-entrant flare horns; both of which are suitable for the harshest of environments.

Specification


Alarm Horn Sounder:
Maximum output: 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
Nominal output: 113dB(A) @ 1m +/- 3dB - Tone 2 [104dB(A) @ 10ft/3m]
No. of tones: 45 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 113dB(A) Min. 105dB(A) - Tone 2
Effective range: 100m/328ft @ 1KHz
LED Beacon / Status Light:
Source: Array of 4 x High Power Cree® LED's
Modes: 1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
Eff. Intensity cd: 87 cd - High Power Steady
Eff. Intensity cd: 160 cd - 1Hz flash
Voltages: 24V dc; 115V ac; 230V ac
General:
Voltages: 24vdc; 48vdc; 115vac; 230vac
Ingress protection: IP rating per EN60079-0:IP64
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/13
Enclosure material: UL94V0 PPS & ABS
Lens material: Borosilicate glass dome with PC prismatic lens cover.
Guard: Stainless Steel dome guard as standard
Cable entries: Dual M20x1.5 or 1/2"NPT
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included, EOL can be factory fitted
LED life: 60,000 hours
Operating temp: -20 to +55°C [-4° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 3.00Kg/6.6Ibs AC: 3.50kg/7.7Ibs
All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

  Alarm Horn LED Beacon
Version: Voltage: Current: Voltage: Steady
High
Power:
Steady
Low
Power:
Flashing
1Hz:
24V dc +/-25% 265mA 18-54V 240mA 134mA 110mA
115V ac 50/60Hz +/-10% 110mA +/-10% 95mA 78mA 90mA
230V ac 50/60Hz +/-10% 56mA +/-10% 48mA 37mA 45mA

Part Codes

Part Code: Ident.: Description:
Product type: E2xC1LD2 Combined alarm horn & LED beacon
Type: F Flare re-entrant horn
Voltage: AC115
AC230
DC024
115V ac 50/60Hz
230V ac 50/60Hz
24V dc (20-28Vdc)
Cable entries:[e] A
B
C
M20x1.5 & ½” NPT
M20x1.5 & M20x1.5
½” NPT & ½” NPT
Stopping plug material: [m] N Nylon
Bracket & Guard: [s] 1
2
304 (A2) Stainless Steel
316 (A4) Stainless Steel
Version: [v] A1 UL, cULs, IECEx & ATEX
Enclosure: [x] B Black
Lens colour: [y] A, B, C
G, M, R
Y
Amber, Blue, Clear
Green, Magenta, Red
Yellow

Coding

  • ATEX / IECEx certification
    II 3G Ex nA IIC Gc T3 Ta -20°C to +55°C
    II 3D Ex tc IIIC Dc T105°C Ta -20°C to +55°C
    II 3D Ex tc IIIC Dc T90°C Ta -20°C to +40C
  • NEC Class / Zone ratings US
    Class I Zone 2 AEx nA IIC Gc T3 Ta -20°C to +55°C
    Zone 22 AEx tc IIIC Dc T105°C Ta -20°C to +55°C
    Zone 22 AEx tc IIIC Dc T90°C Ta -20°C to +55°C
  • CEC Class / Zone ratings Canada
    Ex nA IIC Gc T3B Ta -20°C to +55°C
    Ex nA IIC Gc T3C Ta -20°C to +40°C
    Ex tc IIIC Dc T105°C Ta -20°C to +55°C
    Ex tc IIIC Dc T90°C Ta -20°C to +40°C
  • NEC & CEC Class / Division Ratings for US / Canada
    Class I, Div 2, ABCD T3C Ta -20°C to +55°C
    Class II, Div 2, FG T4A Ta -20°C to +55°C
    Class II, Div 2, FG T5 Ta -20°C to +40°C
    Class III, Div 1&2 Ta -20°C to +55°C

Tone Table

Stage 1 WAV file Frequency Description. Stage 2 Stage 3
T 1   340 Hz Continuous T 2 T 5
T 2   800/1000Hz @ 0.25 sec Alternating T 17 T 5
T 3   500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop T 2 T 5
T 4   800/1000Hz @ 1Hz Sweeping T 6 T 5
T 5   2400Hz Continuous T 3 T 20
T 6   2400/2900Hz @ 7Hz Sweeping T 7 T 5
T 7   2400/2900Hz @ 1Hz Sweeping T 10 T 5
T 8   500/1200/500Hz @ 0.3Hz Sweeping T 2 T 5
T 9   1200/500Hz @ 1Hz - DIN / PFEER P.T.A.P. T 15 T 2
T 10   2400/2900Hz @ 2Hz Alternating T 7 T 5
T 11   1000Hz @ 1Hz Intermittent T 2 T 5
T 12   800/1000Hz @ 0.875Hz Alternating T 4 T 5
T 13   2400Hz @ 1Hz Intermittent T 15 T 5
T 14   800Hz 0.25sec on, 1 sec off Intermittent T 4 T 5
T 15   800Hz Continuous T 2 T 5
T 16   660Hz 150mS on, 150mS off Intermittent T 18 T 5
T 17   544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 2 T 27
T 18   660Hz 1.8sec on, 1.8sec off Intermittent T 2 T 5
T 19   1.4KHz-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s -NFC48-265 T 2 T 5
T 20   660Hz Continuous T 2 T 5
T 21   554Hz/440Hz @ 1Hz Alternating T 2 T 5
T 22   544Hz @ 0.875 sec. Intermittent T 2 T 5
T 23   800Hz @ 2Hz Intermittent T 6 T 5
T 24   800/1000Hz @ 50Hz Sweeping T 29 T 5
T 25   2400/2900Hz @ 50Hz Sweeping T 29 T 5
T 26   Bell T 2 T 15
T 27   554Hz Continuous T 26 T 5
T 28   440Hz Continuous T 2 T 5
T 29   800/1000Hz @ 7Hz Sweeping T 7 T 5
T 30   300Hz Continuous T 2 T 5
T 31   660/1200Hz @ 1Hz Sweeping T 26 T 5
T 32   Two T chime. T 26 T 15
T 33   745Hz @ 1Hz Intermittent T 2 T 5
T 34   1000 & 2000Hz @ 0.5 sec Alternating - Singapore T 38 T 45
T 35   420Hz @ 0.625 sec Australian Alert T 36 T 5
T 36   500-1200Hz 3.75sec /0.25sec. Australian Evac. T 35 T 5
T 37   1000Hz Continuous - PFEER Toxic Gas T 9 T 45
T 38   2000Hz Continuous T 34 T 45
T 39   800Hz 0.25sec on, 1 sec off Intermittent T 23 T 17
T 40   544Hz (100mS)/440Hz (400mS) - NF S 32-001 T 31 T 27
T 41   Motor Siren - slow rise to 1200 Hz T 2 T 5
T 42   Motor Siren - slow rise to 800 Hz T 2 T 5
T 43   1200 Hz Continuous T 2 T 5
T 44   Motor Siren - slow rise to 2400 Hz T 2 T 5
T 45   1KHz 1s on, 1s off Intermittent - PFEER Gen. Alarm T 38 T 34
Country specific or custom tone configurations and alarm frequencies are available upon request.

E2xC1LD2F Combination Alarm Horn & LED Beacon

  • Corrosion proof PPS enclosure
  • Ingress protection IP66/67, Type 4/4X
  • Automatic synchronisation on multi-sounder systems
  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens colour filter
  • Stainless steel fixings
  • Dual cable entries - stopping plug included.
  • Duplicate cable terminations (in & out for daisy-chain installations)
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • IP66/67 ingress protection.

Approvals

  • ATEX certificate: DEMKO 06 ATEX 0421554X,
  • IECEx certficate: IECEx ULD 14.0012X
  • UL/cUL File ref: E230764
