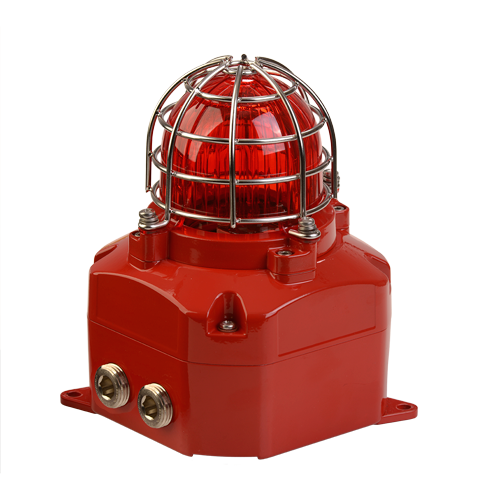

D2xB1X10 Haz Loc Xenon Strobe Beacon Warning Light

The D2xB1X10 features a high output 288.8cd, 10 Joule Xenon strobe beacon.
Low current consumption and high candela output in a robust Type 4/4X, IP66 enclosure ensure the D2xB1X10 is suitable for haz loc fire alarm system and general signalling applications.

The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments.
One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2.
UL & cUL approved 24Vdc version is UL1638 compliant for private mode fire alarm use.

Specification


Energy: 10 Joules (10Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 1,000,000 cd - calculated from energy (J)
Effective Intensity cd: 500 cd - calculated from energy (J)
Peak Candela: 101,784 cd* - measured ref. to I.E.S.
Effective Intensity cd: 288.8 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green,
Magenta, Red & Yellow
Voltages DC: 24Vdc; 48Vdc
Voltages AC: 115Vac; 230Vac
Ingress protection: IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13
Enclosure material: Marine grade LM6 aluminum alloy
Colour: Red (RAL3000), Grey (RAL7038)
Lens material: Borosilicate glass dome with PC prismatic lens cover
Guard: Stainless Steel dome guard as standard
Cable entries: 2 x M20x1.5, 2 x 1/2"NPT, 1 x 3/4"NPT
Stopping plugs: Nickel Plated Brass plugs included
Ground/Earth stud: M5
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Line monitoring: Blocking diode included
EOL can be factory fitted
Operating temp: -40 to +50°C [-40° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 95%
Weight: DC: 1.5kg/3.31Ibs AC:1.75kg/3.86lbs
* All candela data is representative of performance with clear lens at optimum voltage.

Current Consumption

Nominal
Voltage:
Voltage
range:
Nominal
operating
current:
24V dc 24V dc 560mA
48V dc 48V dc 260mA
115V ac 115-120Vac 50/60Hz 185mA
230V ac 220-230Vac 50/60Hz 107mA

Part Codes

Part Code: Ident.: Description:
Product type: D2xB1X10 . 10 Joule Xenon Strobe Beacon
Voltage: AC115
AC230
DC024
DC048
115-120V ac 50/60Hz
220-230V ac 50/60Hz
24V dc
48V dc
Cable entries: [e] M 2 x ½” NPT, 2 x M20x1.5, 1 x 3/4"NPT
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Lens Guard: [s] 1
2
A2 (304) Stainless Steel
A4 (316) Stainless Steel
Version: [v] A1 UL, cUL, IECEx & ATEX
Enclosure: [x] G
R
Grey RAL7038
Red RAL3000
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow
e.g: D2xB1X10DC024MB1A1G/R D2xB1X10 Xenon Beacon in 24Vdc
brass stopping plugs, UL, cULs, IECEx & ATEX approved
Grey enclosure with Red lens

Coding

  • NEC / CEC: Class I Div 2 ABCD T2B Ta -40°C to +50°C
    Class II Div 2 EFG T5 Ta -40°C to +50°C
    Class II Div 2 EFG T6 Ta -40°C to +40°C
    Class III Div 1&2 Ta -40°C to +50°C
  • NEC: Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +50°C)
    Zone 22 AEx tc IIIC 95°C Dc (Ta -40°C to +50°C)
  • CEC: Class I Zone 2 Ex nA IIC T2 Gc X (Ta -40°C to +50°C)
    Zone 22 Ex tc IIIC 95°C Dc (Ta -40°C to +50°C)
  • IECEx & ATEX: II 3G Ex nA IIC T2 Gc (Ta -40°C to +50°C)
    II 3D Ex tc IIIC 95°C Dc (Ta -40°C to +50°C)

D2xB1X10 Haz Loc Xenon Strobe Beacon Warning Light

  • Private mode fire use & General signaling UL1638
  • 73.8 eff. candela - UL1638 Private mode fire
  • 228.8 eff. candela - UL1638 general signaling
  • Xenon tube mechanically secured against vibration & shock
  • User replaceable Xenon tube assembly
  • Duplicate cable terminations (in & out for daisy-chain installations)
  • Large termination area
  • Marine grade aluminium enclosure
  • Ingress protection Type 4/4X/3R/13, IP66
  • High impact resitant Borisilicate glass lens
  • Stainless steel lens guard as standard
  • Field changeable lens colour filter
  • Stainless steel external and internal fixings
  • Duplicate, pluggable cable terminations
  • Conduit mounting via integral 3/4" NPT entry
  • Surface mounting via user installed lugs
  • Dual 1/2"NPT and dual M20 entries
  • Supplied with haz loc rated stopping plugs
  • Compact footprint

Approvals

  • UL/cUL File ref: E245313
  • IECEx certficate: IECEx ULD 14.0004X
  • ATEX certificate: DEMKO 14 ATEX 4786493904X
  • CSFM listing: 7300-2279:0500
1-31-050d2xb1x10_cat
