1-22-170

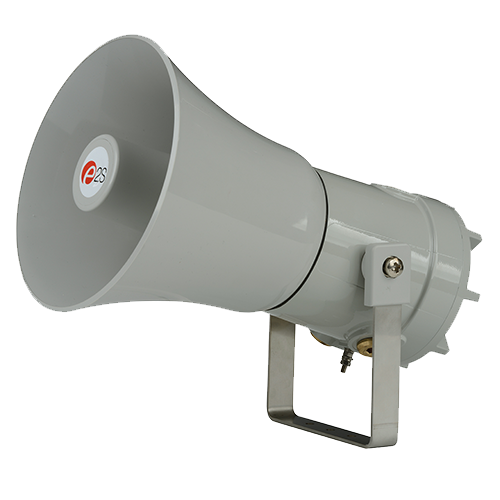

D1xL2F PA Loudspeakers 25W

The D1xL2F is a 25W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xL2F is suitable for all Class I & II Division 1 & Zone 1 & 20 explosion proof applications.

The re-entrant flare horn is high impact, fire retardant ABS and is field replaceable - the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries, and large termination areas. The termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.

Specification


SPL (Gas version): 104dB +/-3dB @ 1W @ 1m (Pink)
118dB +/-3dB @ 25W @ 1m (Rated)
SPL (Dust version): 83dB +/-3dB @ 1W @ 1m (Pink)
97dB +/-3dB @ 25W @ 1m (Rated)
Rated power: 25 Watts RMS
70v line tappings: 25W/12.5W/6W/2W tappings
(z=196 Ohms/392 Ohms/816.67 Ohms/2.45k Ohms)
Low impedance: 8 Ohm or 16 Ohm
Directivity Index: 7.6 @ 1kHz & 17.6 @ 4kHz [dB on-axis]
Frequency range: 300Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer )
470µF Capacitor (Low impedance)
Ingress protection: EN60529: IP66
UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material: Marine grade aluminium LM6- copper free
Chromated & powder coated - corrosion proof
Colour: Red (RAL3000), Grey (RAL7038)
Cable entries: 1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Grounding stud: M5
Operating temp: -40° to +70°C [-40° to +158°F]
Storage temp: -50° to +70°C [-58° to +158°F]
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: 70V line: 4.5kg/9.9Ibs
Low imp.: 4.2kg/9.1Ibs

Part Codes

Version: Part code:
Product type: D1xL2
Horn type: F Flare re-entrant horn
Type: V070
R008
R016
70V Line Transformer
8 Ohm Low impedance
16 Ohm Low impedance
Cable Entry Type:[e] A
B
C
1 x 1/2"NPT & 2 x M20 x 1.5mm
1 x 1/2"NPT & 2 x 1/2"NPT
1 x 1/2"NPT & 2 x 3/4"NPT
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket material: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1
D1
Gas environments Class I/Zone1
Dust environments Class II/Zone 20
Enclosure colour: [x] G
R
Grey RAL7038
Red RAL3000
Example: D1xL2FR008 [e][m][s][v][x]
D1xL2FR008AB1A1R
Ratings:
A1: Gas version
NEC / CEC: Class I Div 1 ABCD T6 Ta -40°C to +70°C
  Class I Div 2 ABCD T6 Ta -40°C to +70°C
  Class I Zone 1 IIC T6 Ta -40°C to +70°C
D1: Dust version
NEC / CEC: Class II Div 1 FG T6 Ta -40°C to +70°C
  Class II Div 2 FG T6 Ta -40°C to +70°C
  Class III Div 1&2
  Zone 20 IIIB Ta -40°C to +70°C

Coding

  • A1: Gas version
    NEC / CEC:
    Class I Div 1 ABCD T6 Ta -40°C to +70°C
    Class I Div 2 ABCD T6 Ta -40°C to +70°C
    Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
  • D1: Dust version
    NEC / CEC:
    Class II Div 1 FG T6 Ta -40°C to +70°C
    Class II Div 2 FG T6 Ta -40°C to +70°C
    Class III Div 1 & 2
    Zone 20, 21, 22 IIIB Ta -40°C to +70°C
  • Protection concept: Ex d / AEx d
