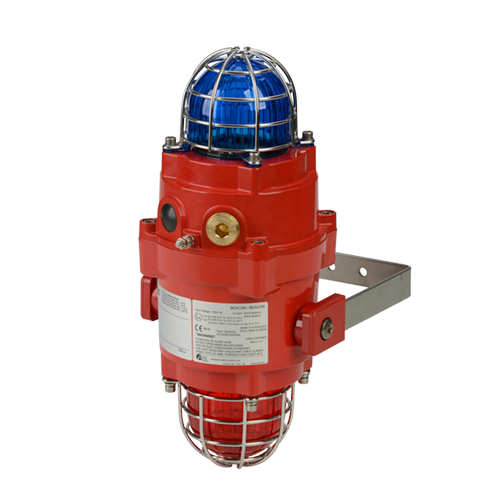

BExTBG05 Explosion Proof Telephone Beacon 5 Joule

The flameproof BExTBG05 telephone initiated Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.

The BExTBG05 5 Joule units are telephone initiated beacons. Their robust construction makes installation in the harshest of environments possible. Additional features include stainless steel lens guard and stainless steel mounting bracket as standard. The ring tone detect circuit senses the ringing voltage on the telephone line and switches the supply (115V ac or 230V ac) to enable the beacon until the telephone is answered.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Specification


Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd - calculated from energy (J)
Eff. Intensity cd: 250 cd - calculated from energy (J)
Peak Candela: 39,463 cd* - measured ref. to I.E.S.
Eff. Intensity cd: 120 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free
LM6 Aluminium
Enclosure finish: Chromate & powder coated finish - anti-corrosion.
Colour: RAL3000 Red
(others available on request)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Tube life : Emissions are reduced to 70% after 5 million flashes
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight : 2.75kg/6.05Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.

Current Consumption

Version: Voltage: Current:
115V ac 50Hz/60Hz +/-10% 140mA
230V ac 50Hz/60Hz +/-10% 55mA

Part Codes

Version: Part code:
Product type: BExTBG05 Explosion proof Telephone Initiated 5J Xenon Beacon
Type: DP Ex d, UV stable PC Colour Lens
Voltage: AC115
AC230
115V ac
240V ac
Cable Entry Type:[e]






Note:
A
B
C
D
E
F
G
2 x M20x1.5mm
2 x 1/2" NPT - adaptors
2 x 3/4" NPT - adaptors
2 x M25x1.5mm - adaptors
1 x 1/2" NPT - adaptor
1 x 3/4" NPT - adaptor
1 x M25x1.5mm - adaptor
M20 stopping plugs for unused entries supplied
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket/guard matl: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 Default - IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: [x] R
S
Red RAL3000
Special - contact E2S
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow

Assemblies

Assemblies: The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact E2S sales.

Coding

  • II 2G Ex d IIC T5 Gb Ta. -50°C to +45°C
  • II 2G Ex d IIC T4 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T90°C Db Ta. -50°C to +40°C
  • II 2D Ex tb IIIC T105°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T120°C Db Ta. -50°C to +70°C

Effective Candela lens colour factor


Amber Blue Clear Green Red Yellow
0.70 0.24 1.00 0.25 0.23 0.93
