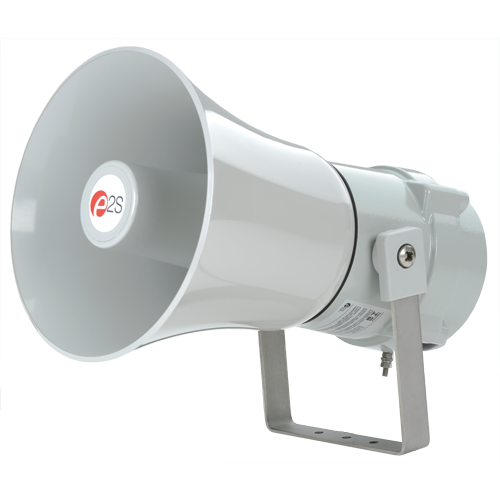

BExH120 ‘Hootronic’ Explosion Proof Alarm Horn

The flameproof BExH120 Hootronic Siren is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. The BExH120 authentically reproduces the traditional sounds of electro-mechanical devices whilst providing a significantly higher level of performance and reliability.

The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way. With output levels of up to 117.5dB(A) at 1 metre the BExH120 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal quality will not degrade with age.

Specification


Nominal output: 117.5dB(A) @ 1m +/- 3dB - Tone 4 [108.5dB(A) @ 10ft/3m]
No. of tones: 5
No. of stages: 3
Volume control: Yes
Effective range: 200m/656ft @ 1KHz
Voltages DC: 24vdc
Voltages AC: 115vac; 230vac
Stage switching: Negative
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish - anti-corrosion.
Colour: RAL3000 Red
Grey RAL7038
Special - available on request
BExH120 horn: High impact UL94 V0 & 5VA FR ABS
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 - 2.5mm² (20-14 AWG)
Enclosure volume: <2 litres
Line monitoring: Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor
or diode (DC versions) can be fitted
Relative humidity: 95% - Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: DC: 3.20kg/7.04Ibs AC: 3.40kg/7.48Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.

Current Consumption

Voltage: Max. I/P Volts: Current:
24V dc 30V dc 400mA
115V ac 50/60Hz 126.5V ac 130mA
230V ac 50/60Hz 253V ac 65mA

Part Codes

Version: Part code:
Product type: BExH120 Explosion proof Hootronic Alarm
Type: DF Ex d, Flare re-entrant horn
Voltage: DC024
AC115
AC230
24V dc
115V ac
240V ac
Cable Entry Type:[e]






Note:
A
B
C
D
E
F
G
2 x M20x1.5mm
2 x 1/2" NPT - adaptors
2 x 3/4" NPT - adaptors
2 x M25x1.5mm - adaptors
1 x 1/2" NPT - adaptor
1 x 3/4" NPT - adaptor
1 x M25x1.5mm - adaptor
M20 stopping plugs for unused entries supplied
Adaptor/Stopping
plug material: [m]
B
N
S
Brass
Nickel Plated
Stainless Steel
Bracket material: [s] 1
2
3
4
A2 304 Stainless Steel
A4 316 Stainless Steel
A2 304 St/St with Equip. Tag
A4 316 St/St with Equip. Tag (304)
Product version: [v] A1 Default - IECEx, ATEX, Ex EAC & INMETRO
Enclosure colour: [x] R
G
S
Red RAL3000
Grey RAL7038
Special - contact E2S

Assemblies

The products from the BEx range are available as multiple unit assemblies with and without junction boxes. See the BExP data sheet for further info.

Coding

  • II 2G Ex d IIB T4 Ta -50° to +70°C
  • II 2G Ex d IIC T4 Ta -50° to +55°C
  • II 2D Ex tb IIIC T100°C Db Ta -50°C to +55°C
  • II 2D Ex tb IIIC T115°C Db Ta -50°C to +70°C

Tone Table

Stage 1 WAV file Frequency Description. Stg 2 Stg 3
T 1   Industrial Hooter T 3 T 5
T 2   High Frequency Mechanical Siren T 1 T 5
T 3   Medium Frequency Mechanical Siren T 1 T 5
T 4   Electro Mechanical Buzzer T 2 T 5
T 5   Mechanical Bell T 1 T 2
Country specific or custom tone configurations and alarm frequencies are available upon request.
